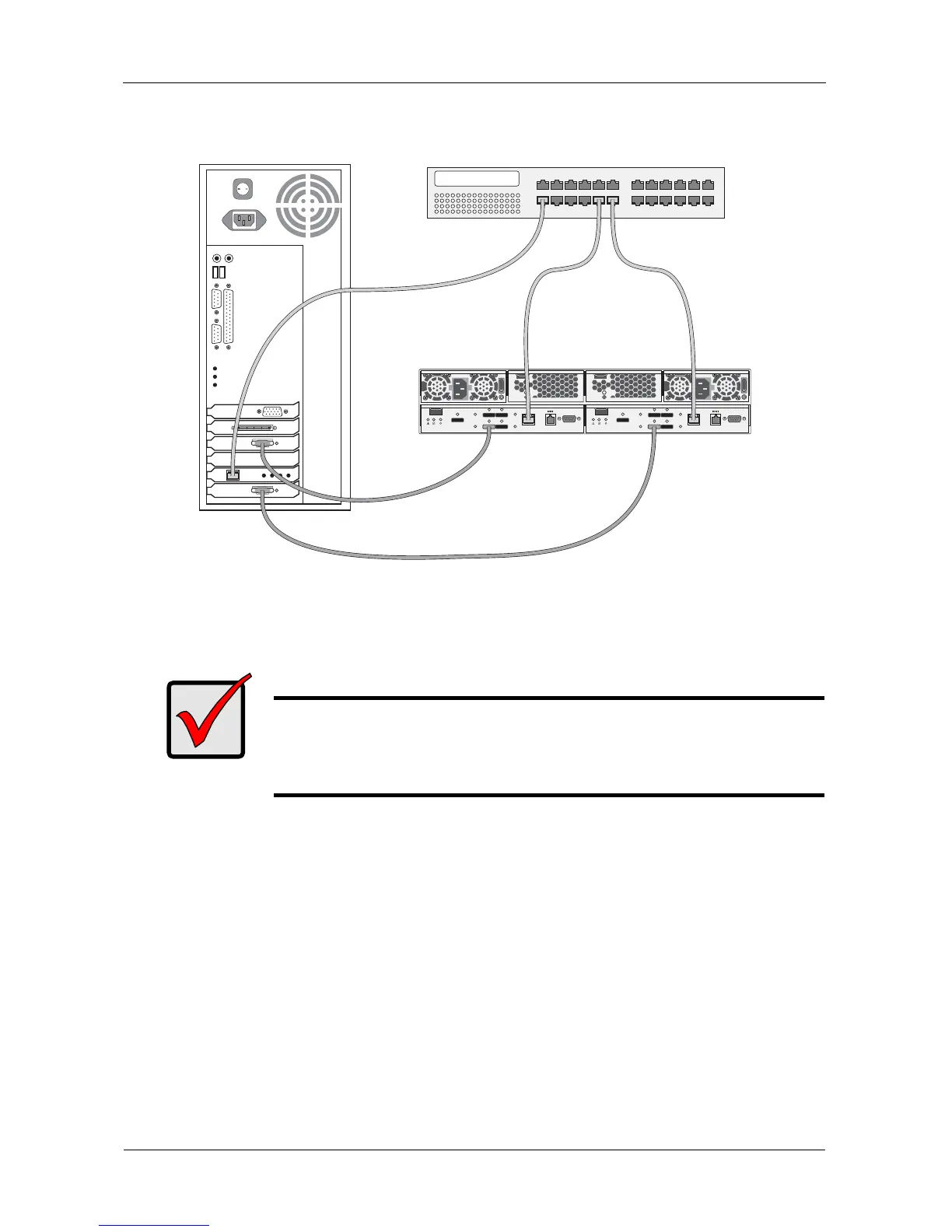

Figure 16.SAS DAS data and management connections
In the diagram above, the E310s model is shown. Connections for the E610s are
the same.
Important
For multipathing (MPIO) applications, see:
• “Appendix B: Multipathing on Windows” on page 367
• “Appendix C: Multipathing on Linux” on page 389
Mgmt
UPS
115200
8 N 1
Mgmt
UPS
115200
8 N 1
O
I
O
I
Host PC or Server
VTrak
Network Switch
To Next Page
