RL78/G15 CHAPTER 6 TIMER ARRAY UNIT
R01UH0959EJ0110 Rev.1.10 Page 203 of 765
Mar 7, 2023
The rules of the simultaneous channel operation function are applied in a channel group (a master channel and slave
channels forming one simultaneous channel operation function).
If two or more channel groups that do not operate in combination are specified, the basic rules of the simultaneous
channel operation function in 6.4.1 Basic rules of simultaneous channel operation function do not apply to the channel
groups.
Remark m: Unit number (m = 0), n: Channel number (n = 0 to 7)

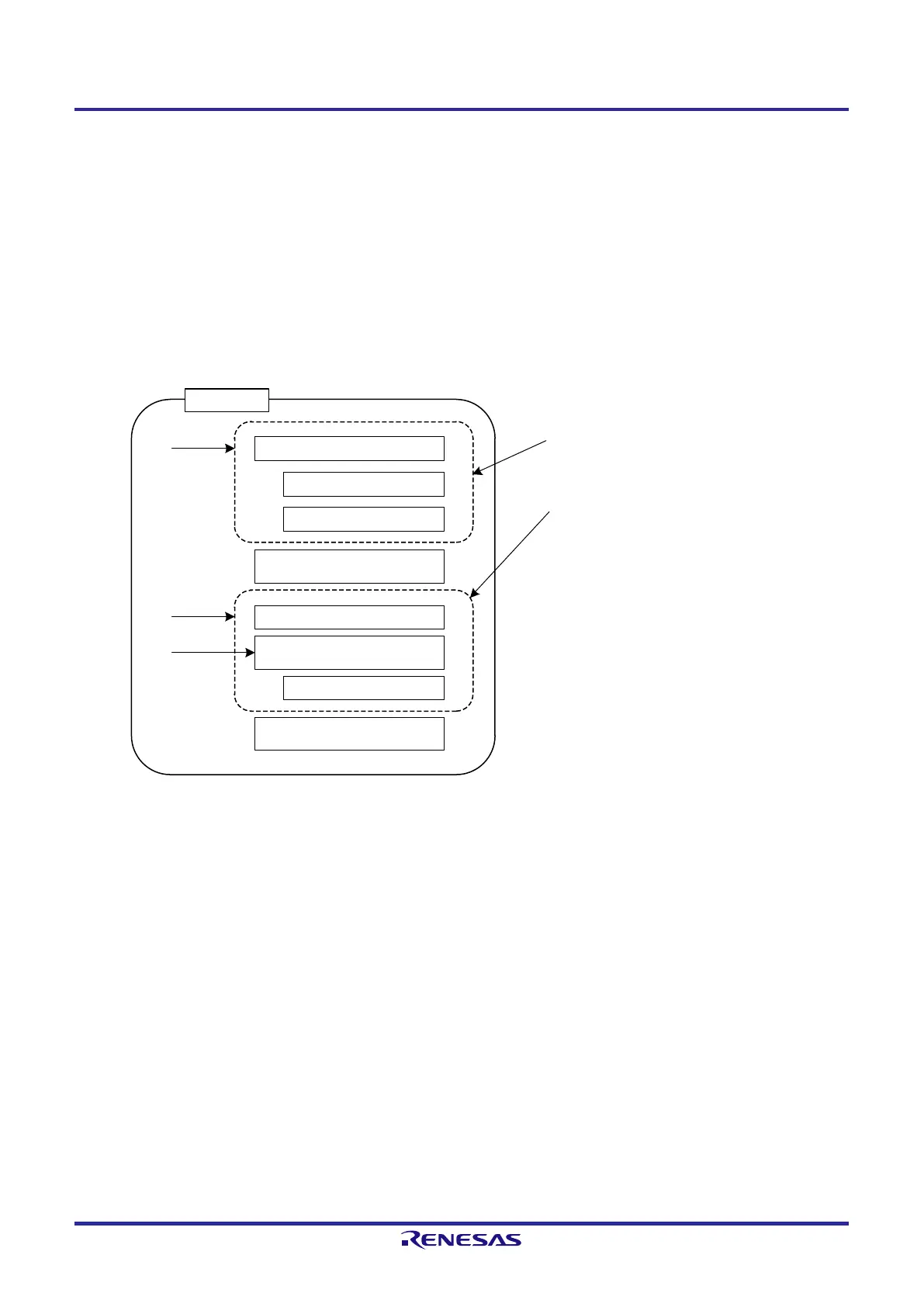

Example)
Channel group 1
(Simultaneous channel operation function)
CK00
Channel 0: Master
Channel 1: Slave
Channel 2: Slave
TAU0
Channel 3: Independent channel
operation function
Channel 4: Master
Channel 5: Independent channel
operation function
Channel 6: Slave
Channel 7: Independent channel
operation function
CK01
CK00
Channel group 2
(Simultaneous channel operation function)
* The operation clock of channel group 1 may be
different from that of channel group 2.
* A channel that operates independent channel
operation function may be between channel
group 1 and channel group 2.
* A channel that operates independent channel
operation function may be between a master
and a slave of channel group 2. Furthermore,
the operation clock may be set separately.
To Next Page
