(2) When valid edge of input signal via the TImn pin is selected (CCSmn = 1)
The count clock (f
TCLK
) becomes the signal that detects valid edge of input signal via the TImn pin and synchronizes next
rising f
MCK
. The count clock (f
TCLK
) is delayed for 1 to 2 period of f
MCK
from the input signal via the TImn pin (when a noise
filter is used, the delay becomes 3 to 4 clock).
Counting of timer count register mn (TCRmn) delayed by one period of f
CLK
from rising edge of the count clock, because
of synchronization with f
CLK
. But, this is described as “counting at valid edge of input signal via the TImn pin”, as a matter
of convenience.

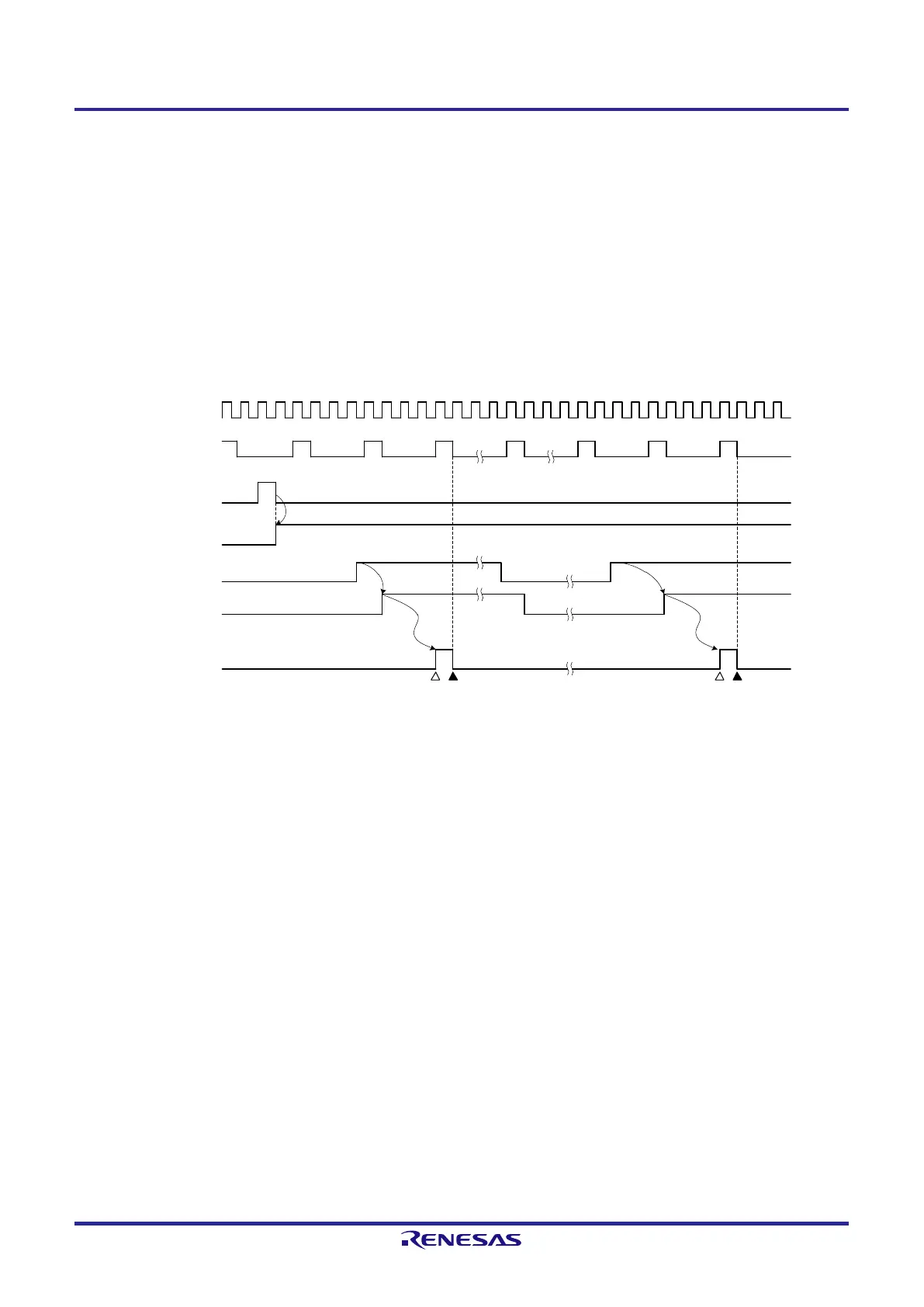

Figure 6-23. Timing of f
CLK
and count clock (f
TCLK
) (When CCSmn = 1, noise filter unused)
f
CLK
f
MCK
TSmn (Write)
TEmn
TImn input
Sampling wave
Rising edge
detection signal
(f
TCLK
)
<1>
<2>
<3>
Edge detection Edge detection
<1> Setting TSmn bit to 1 enables the timer to be started and to become wait state for valid edge of input signal via
the TImn pin.
<2> The rise of input signal via the TImn pin is sampled by f
MCK
.
<3> The edge is detected by the rising of the sampled signal and the detection signal (count clock) is output.
Remark 1. : Rising edge of the count clock
: Synchronization, increment/decrement of counter
Remark 2. f
CLK
: CPU/peripheral hardware clock
f
MCK
: Operation clock of channel n
Remark 3. The waveform of the input signal via TImn pin of the input pulse interval measurement, the measurement
of high/low width of input signal, the delay counter, and the one-shot pulse output are the same.
