RL78/G15 CHAPTER 6 TIMER ARRAY UNIT

R01UH0959EJ0110 Rev.1.10 Page 271 of 765

Mar 7, 2023

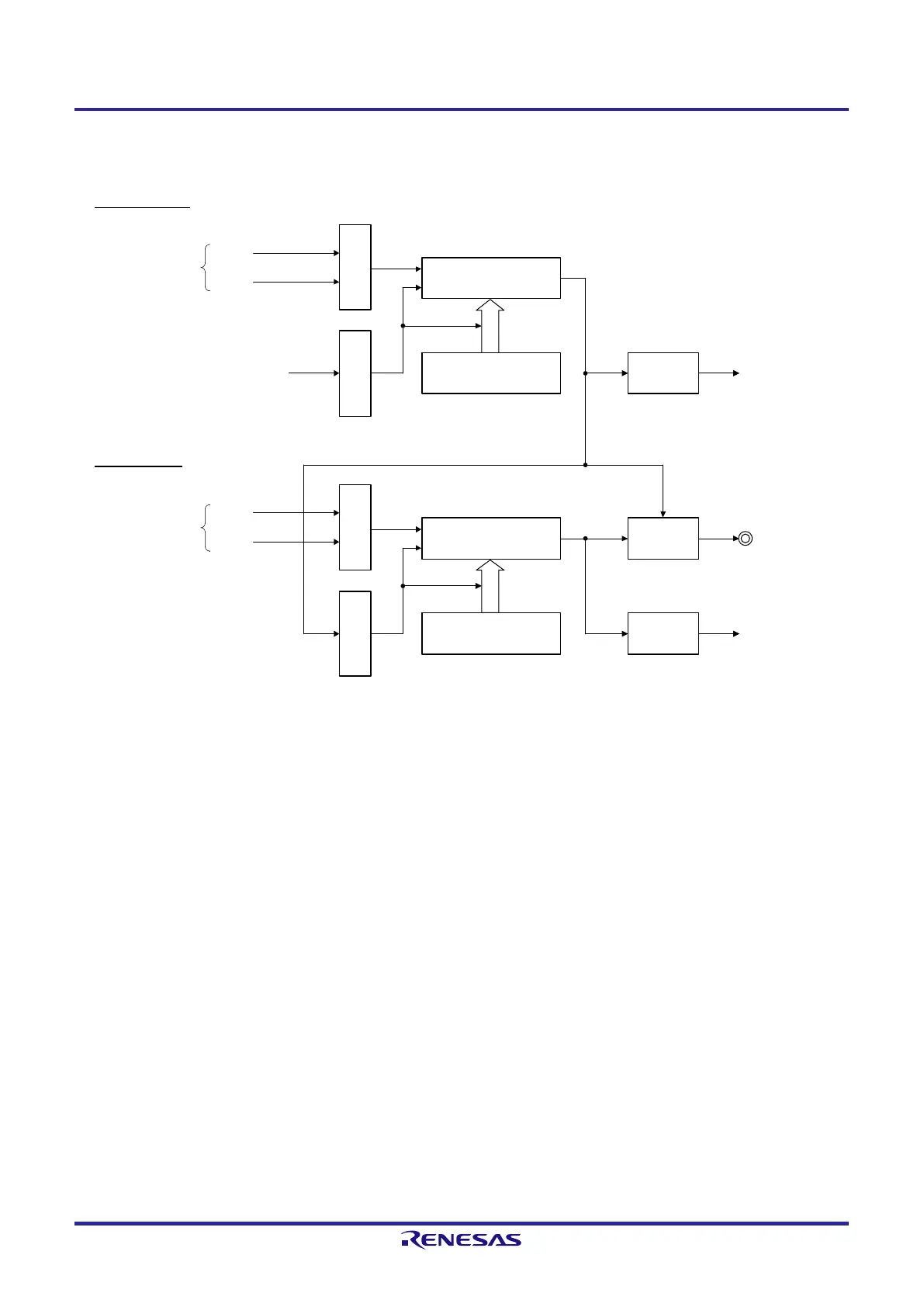

Figure 6-69. Block Diagram of Operation as PWM Function

Interrupt signal

(INTTMmn)

Timer data register mn

(TDRmn)

Timer counter register mn

(TCRmn)

Interrupt

controller

Master channel

(interval timer mode)

TSmn

Slave channel

(one-count mode)

TOmp pin

Interrupt signal

(INTTMmp)

Timer data register mp

(TDRmp)

Output

controller

Timer counter register mp

(TCRmp

)

Interrupt

controller

CKm0

CKm1

Operation clock

CKm0

CKm1

Operation clock

Clock selection

Trigger

selection

Clock selection

Trigger

selection

Remark m: Unit number (m = 0), n: Master channel number (n = 0, 2, 4, 6)

p: Slave channel number (n < p ≤ 7)
