RL78/G15 CHAPTER 10 A/D CONVERTER

R01UH0959EJ0110 Rev.1.10 Page 317 of 765

Mar 7, 2023

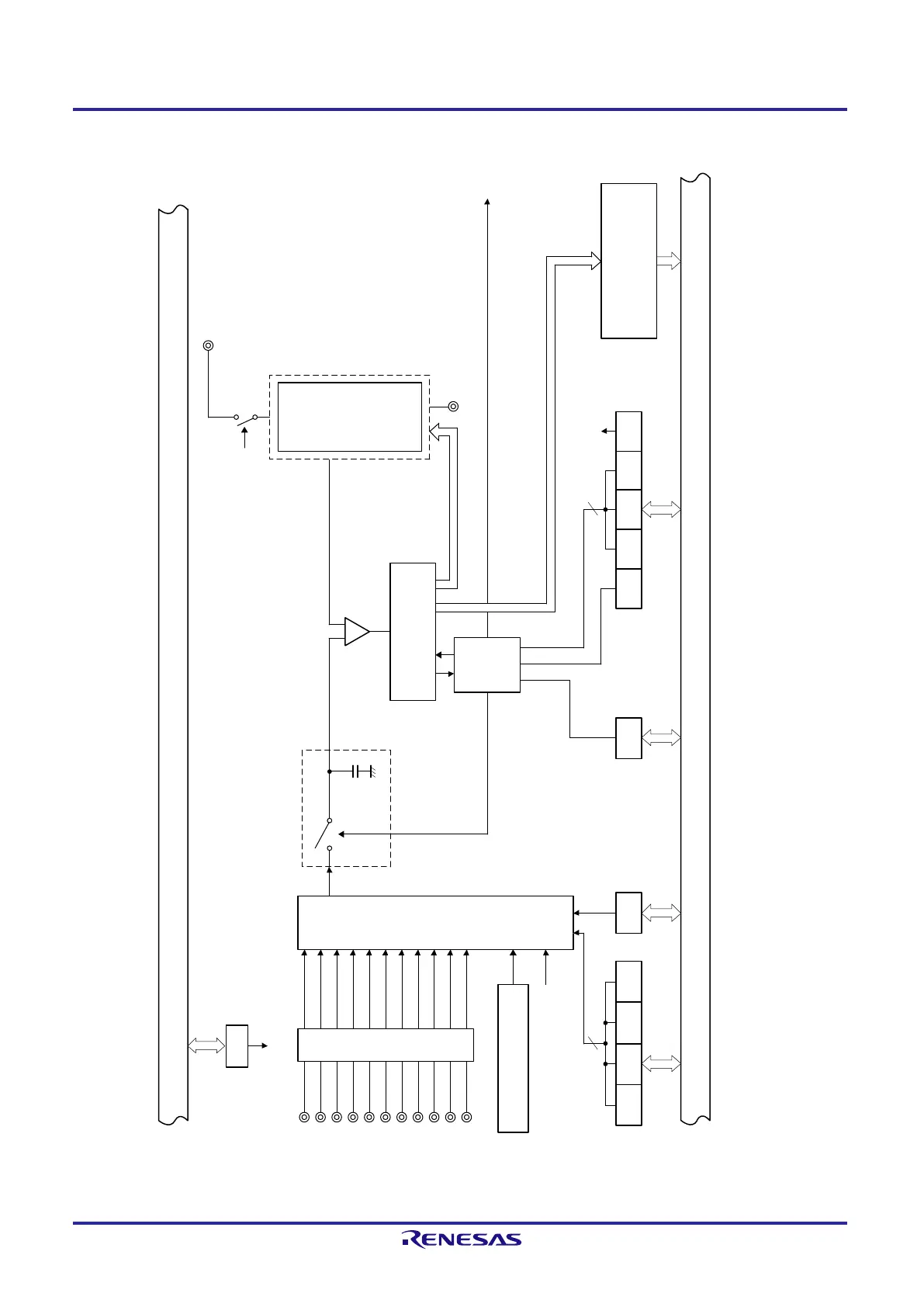

Figure 10-1. Block Diagram of A/D Converter

Internal bus

Selector

P03/ANI2

P04/ANI3

Controller

ADS3

Internal reference voltage

(0.815 V (typ.))

PMCxx

P07/ANI6

P23/ANI7

P22/ANI8

P21/ANI9

P20/ANI10

P05/ANI4

P06/ANI5

P01/ANI0

P02/ANI1

Sample & hold circuit

A/D voltage comparator

ADCE bit

INTAD

Analog input channel

specification register (ADS)

A/D converter mode

A/D test register (ADTES)

A/D converter mode

Note 1

Digital port control

ADS2 ADS1

ADS0 ADTES1 ADCS FR1

FR0 LV0

ADCE

ADTYP

A/D conversion result storage

Successive approximation

Port mode control register

Comparison

voltage

generator

Note 1. ANI0, ANI2, ANI3 for 8-pin products; ANI0 to ANI3 for 10-pin products; ANI0 to ANI6 for 16-pin products
