RL78/G15 CHAPTER 10 A/D CONVERTER

R01UH0959EJ0110 Rev.1.10 Page 323 of 765

Mar 7, 2023

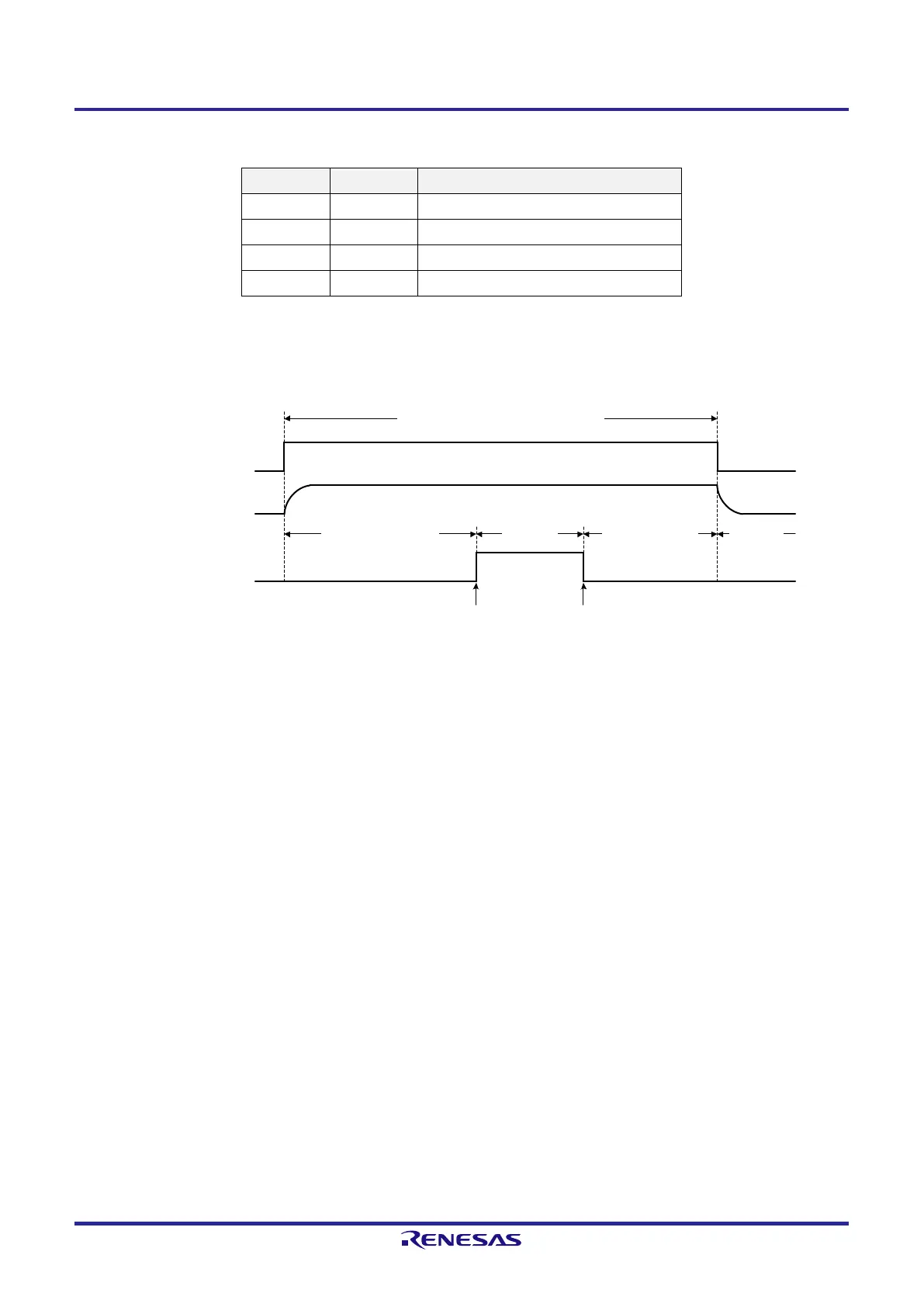

Table 10-1. Settings of ADCS and ADCE Bits

ADCS ADCE A/D Conversion Operation

0 0 Conversion stopped state

0 1 Conversion standby state

1 0 Setting prohibited

1 1 Conversion-in-progress state

Figure 10-4. Timing Chart when A/D Voltage Comparator Is Used

Writing 1 to

ADCS

 Writing 0 to ADCS

 Clearing the flag on completion of A/D conversion

A/D voltage comparator: operation enabled

ADCE

A/D voltage comparator

ADCS

Conversion standby

Note 1

Conversion

operation

Conversion standby

Conversion

stopped

Note 1. It requires at least 0.125 μs to stabilize the internal circuit until the A/D conversion operation is started (ADCS

= 1) after the operation of the A/D voltage comparator is enabled (ADCE = 1). If the ADCS bit is set to 1

without waiting for at least 0.125 μs, ignore data of the first conversion.
