RL78/G15 CHAPTER 11 COMPARATOR

R01UH0959EJ0110 Rev.1.10 Page 348 of 765

Mar 7, 2023

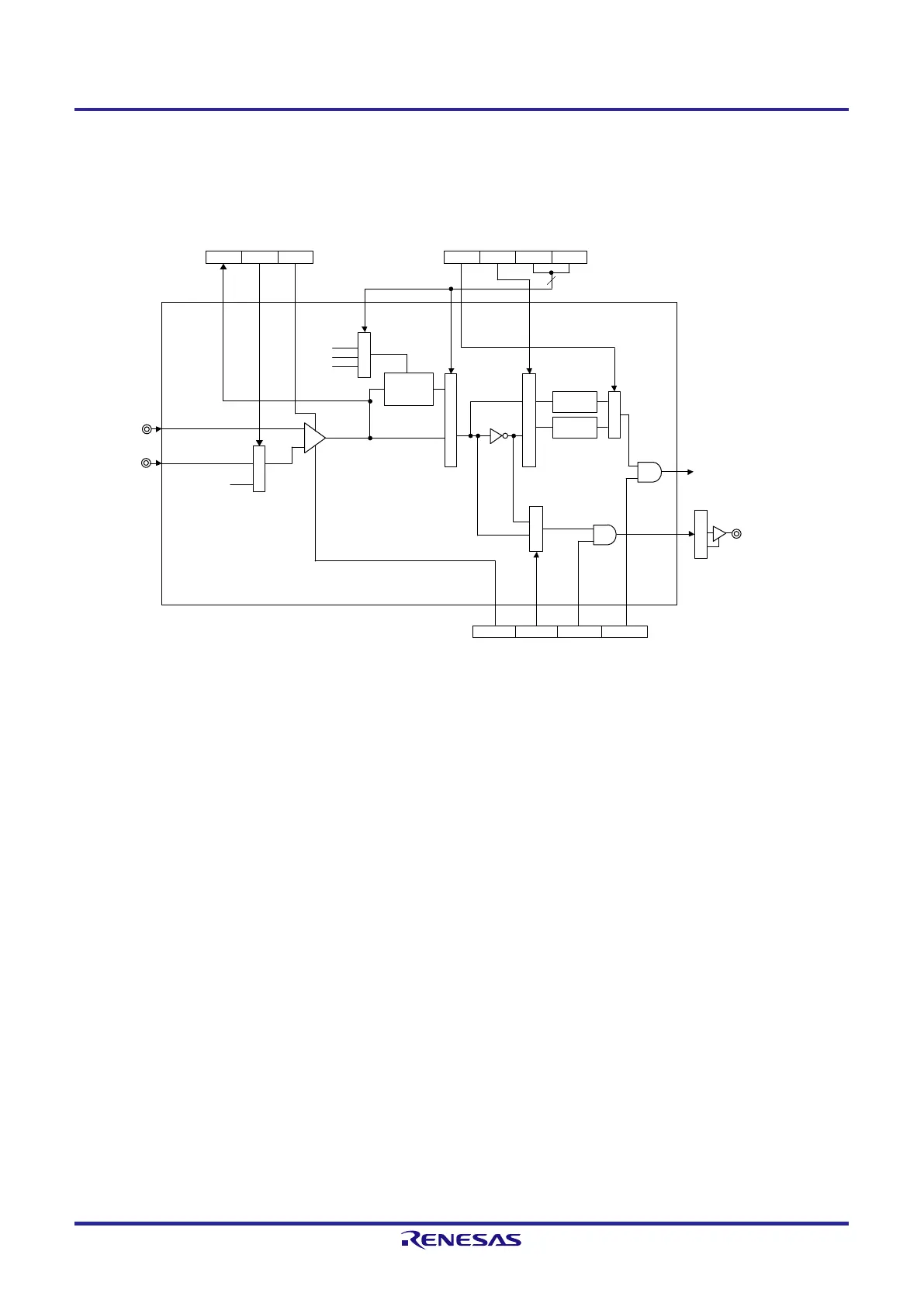

Figure 11-1 shows the block diagram of the comparator.

Figure 11-1. Block Diagram of the Comparator

IVCMPn

IVREFn

–

CLK

/32

Both

-edge

detection

INTCMPn

(

comparator detection n interrupt)

I/O control

VCOUTn

Sampling

clock

Internal reference

voltage

(0.815 V (typ.))

CnMON CnEDG CnEPO CnFCK1 CnFCK0

Comparator mode setting register

(

COMPMDR)

Comparator filter control register

(COMPFIR)

Comparator output control register

(

COMPOCR)

CnIE

CnOECnOPSPDMD

CnVRF

CnENB

Single-edge

detection

Digital filter

(match

times)

Selector

Remark n = 0, 1
