RL78/G15 CHAPTER 12 SERIAL ARRAY UNIT
R01UH0959EJ0110 Rev.1.10 Page 421 of 765
Mar 7, 2023
(2) Operation procedure

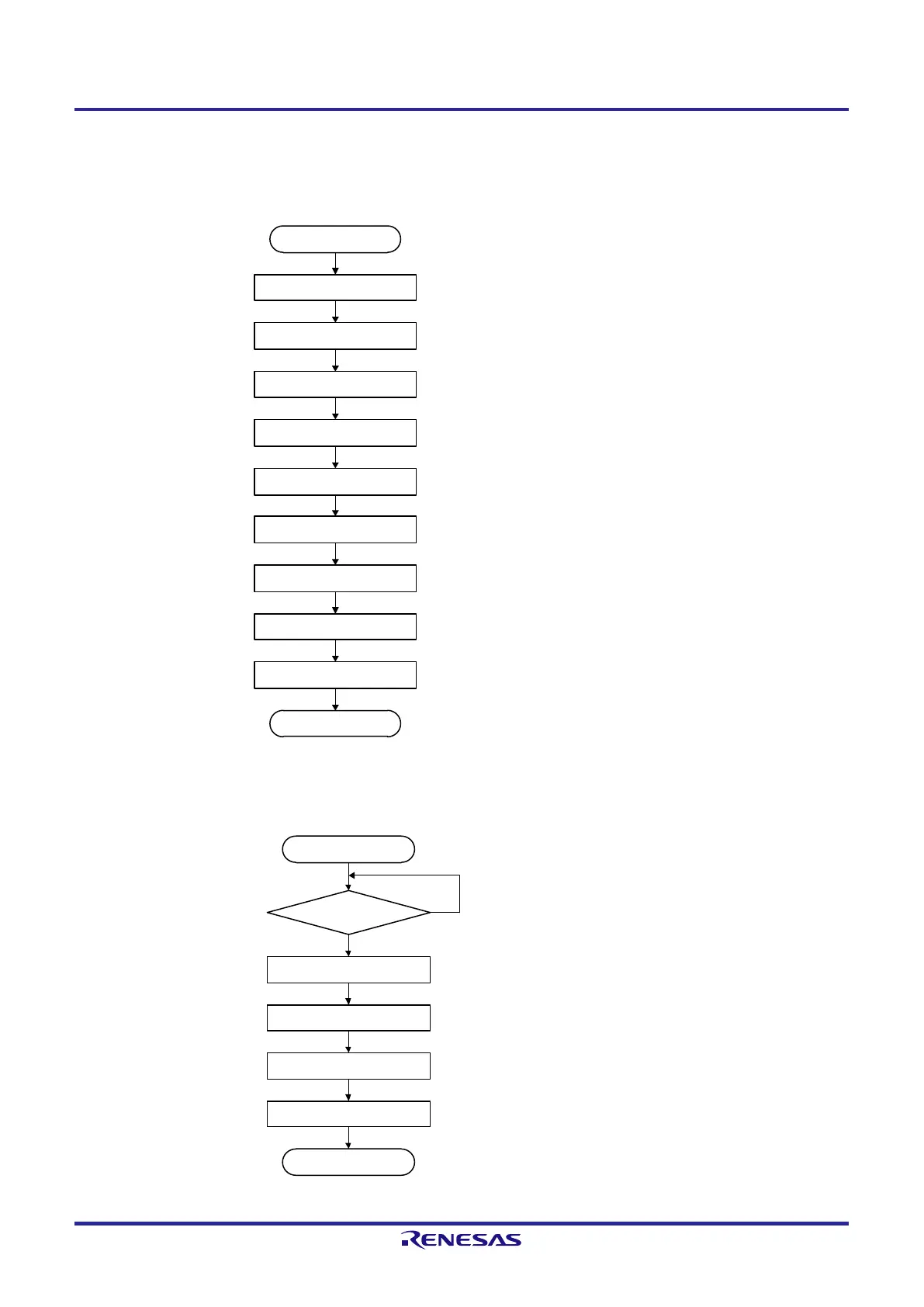

Figure 12-38. Initial Setting Procedure for Master Transmission/Reception
Release the serial array unit from the reset state, and
start clock supply to the serial array unit.
Starting initial setting
Setting the PER0 register
Setting the SPSm register
Setting the SMRmn register
Setting the SCRmn register
Setting the SDRmn register
Changing setting of the SOEm
register
Setting port
Writing to the SSm register
Completing initial setting
Set the operation clock.
Set an operation mode, etc.
Set a communication format.
Set a transfer baud rate (setting the transfer clock by
dividing the operation clock (f
MCK
)).
Set the SOEmn bit to 1 and enable data output of
the target channel.
Enable data output and clock output of the target channel
by setting a port register and a port mode register.
Set the SSmn bit of the target channel to 1
(SEmn bit = 1: to enable operation).
Initial setting is completed.
Set transmit data to the SIOp register (bits 7 to 0 of
the SDRmn register) and start communication.
Setting the SOm register
Set the initial output level of the serial clock (CKOmn) and
serial data (SOmn).
Figure 12-39. Procedure for Stopping Master Transmission/Reception
Starting setting to stop
Writing the STm register
Changing setting of the SOEm
register
Changing setting of the SOm
register
Setting the PER0 register
Stop setting is completed
If there is any data being transferred, wait for their
completion. (If there is an urgent must stop, do not wait.)
Write 1 to the STmn bit of the target channel
(stopping operation by setting SEmn = 0).
Set the SOEmn bit to 0 and stop the output of
the target channel.
The levels of the serial clock (CKOmn) and serial data
(SOmn) on the target channel can be changed if
necessitated by an emergency.
Stop clock supply to the serial array unit, and reset
the serial array unit.
After the stop setting is completed, go to the next
processing.
(Essential)
TSFmn = 0?
No
Yes
(Selective)
(Essential)
(Selective)
(Selective)
To Next Page
