RL78/G15 CHAPTER 13 SERIAL INTERFACE IICA

R01UH0959EJ0110 Rev.1.10 Page 568 of 765

Mar 7, 2023

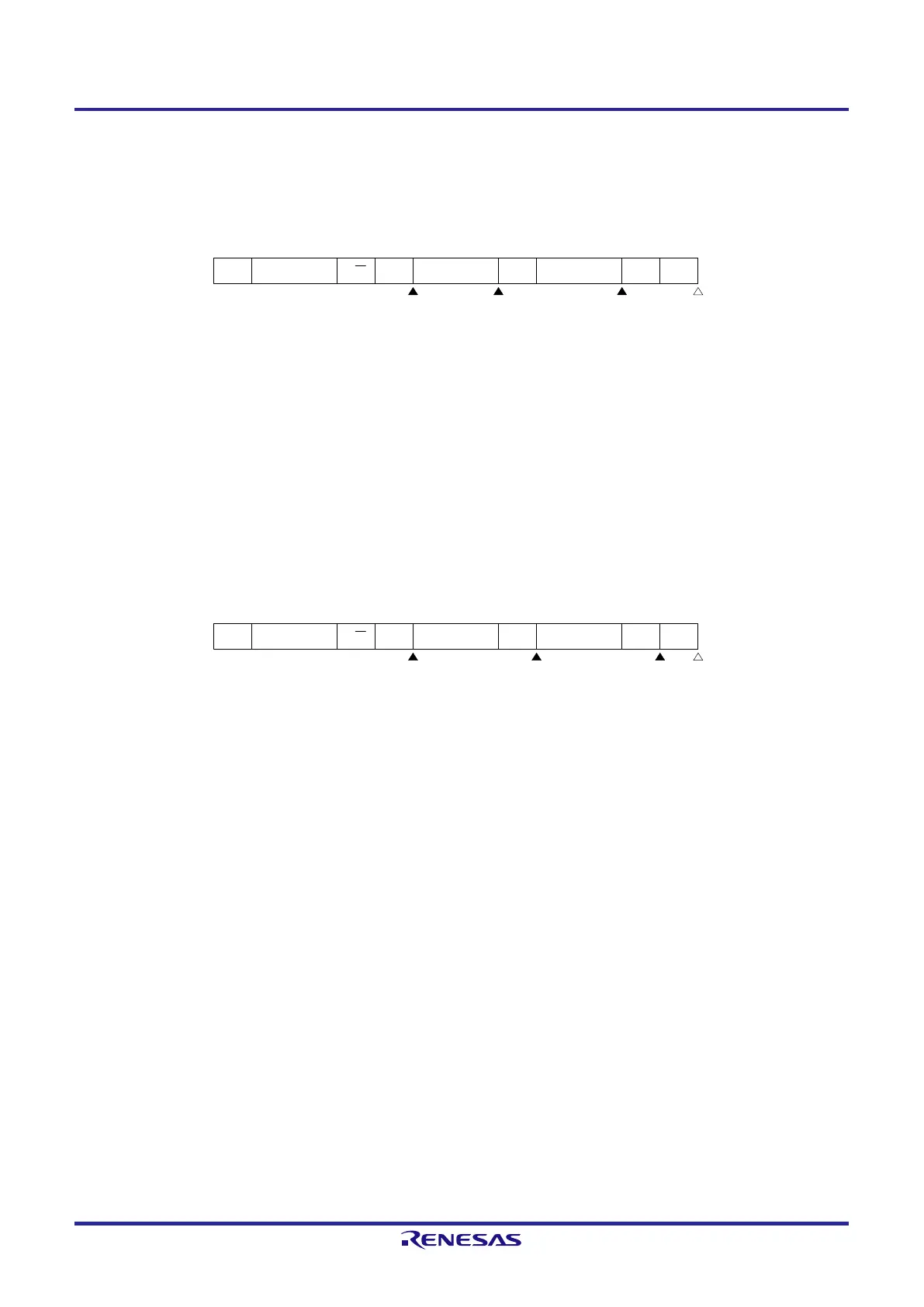

(2) Slave operation (slave address data reception)

(a) Start ~ Address ~ Data ~ Data ~ Stop

(i) When WTIM0 = 0

1 2

3 4

ST AD6-AD0 R/W D7-D0 SPACK

ACKACK D

7-D

1: IICS0 = 0001×110B

2: IICS0 = 0001×000B

3: IICS0 = 0001×000B

4: IICS0 = 00000001B

Remark : Always generated

: Generated only when SPIE0 = 1

×: Don’t care

(ii) When WTIM0 = 1

1 2 3 4

ST AD6-AD0 R/W D7-D0

SPACK ACKACK D7-D0

1: IICS0 = 0001×110B

2: IICS0 = 0001×100B

3: IICS0 = 0001××00B

4: IICS0 = 00000001B

Remark : Always generated

: Generated only when SPIE0 = 1

×: Don’t care
