RL78/G15 CHAPTER 13 SERIAL INTERFACE IICA

R01UH0959EJ0110 Rev.1.10 Page 567 of 765

Mar 7, 2023

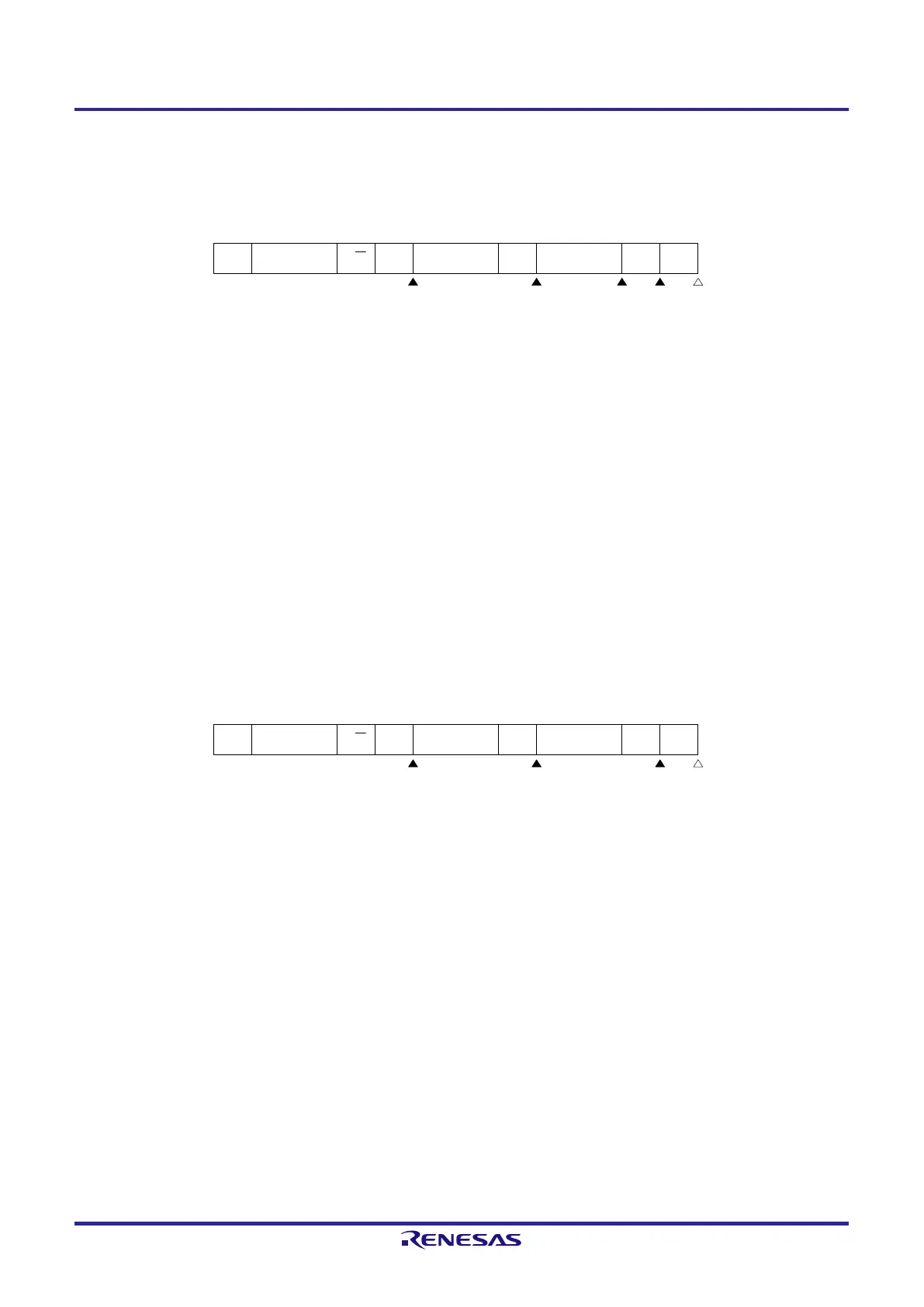

(i) When WTIM0 = 0

SPT0 = 1

↓

AD6-AD0

R/W

D7-D0

ACK

ACK D7

1: IICS0 = 1010x110B

2: IICS0 = 1010x000B

3: IICS0 = 1010x000B (Sets the WTIM0 bit to 1

Note 1

)

4: IICS0 = 1010xx00B (Sets the SPT0 bit to 1)

5: IICS0 = 00000001B

Note 1. To generate a start condition, set the WTIM0 bit to 1 and change the timing for generating the INTIICA0

interrupt request signal.

Remark : Always generated

: Generated only when SPIE0 = 1

×: Don’t care

(ii) When WTIM0 = 1

SPT0

= 1

↓

1 2 3

ST AD6

-AD0 R

/W D7-D0

SPACK ACK

ACK D

7-D

1: IICS0 = 1010×110B

2: IICS0 = 1010×100B

3: IICS0 = 1010××00B (Sets the SPT0 bit to 1)

4: IICS0 = 00000001B

Remark : Always generated

: Generated only when SPIE0 = 1

×: Don’t care
