RL78/G15 CHAPTER 13 SERIAL INTERFACE IICA

R01UH0959EJ0110 Rev.1.10 Page 570 of 765

Mar 7, 2023

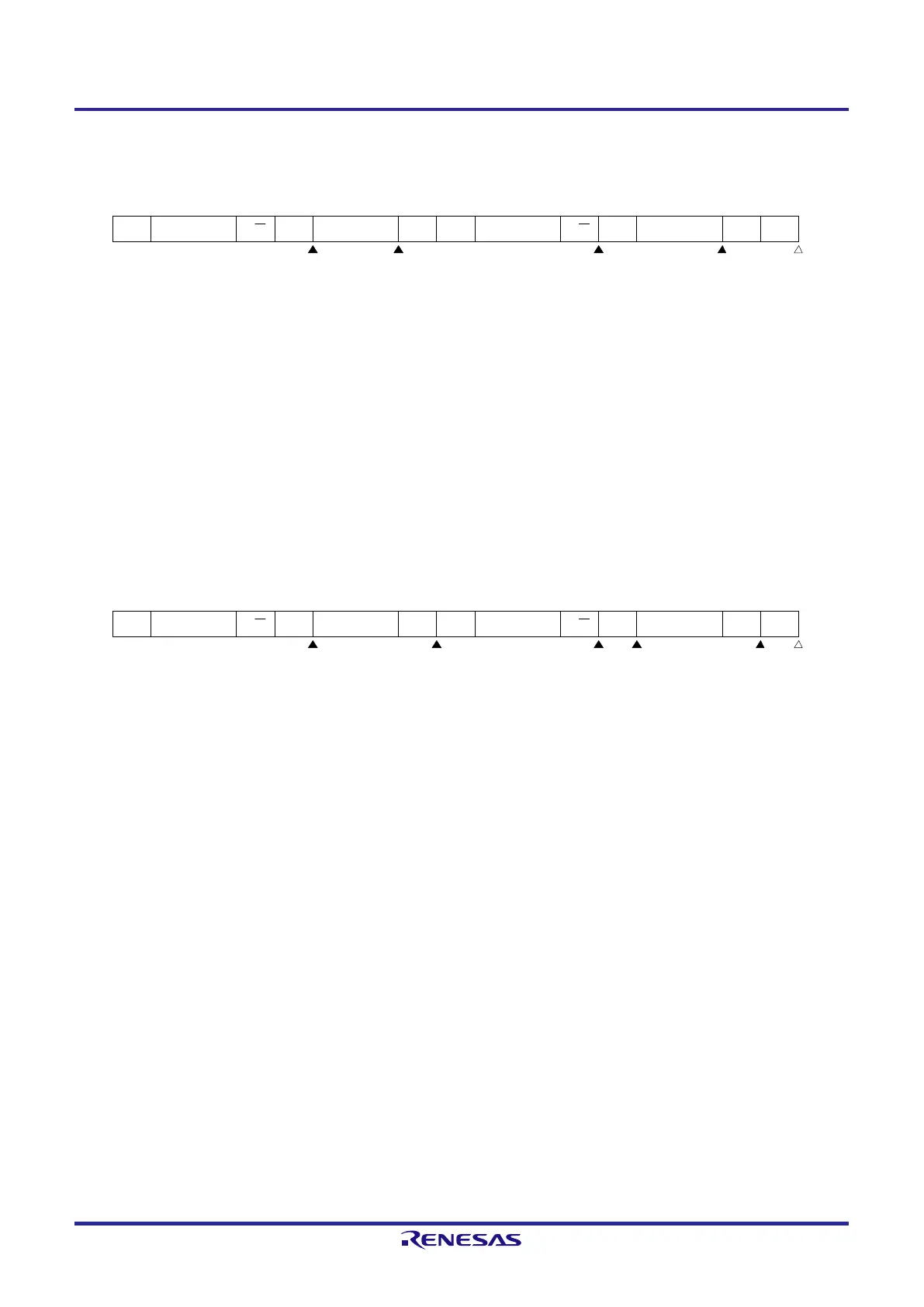

(i) When WTIM0 = 0 (an address mismatch after restart (extension code))

AD6-AD0

R/W

D7-D0

AD6-AD0

D7-D0

ACK

R/W

ACK

1: IICS0 = 0001×110B

2: IICS0 = 0001×000B

3: IICS0 = 0010×010B

4: IICS0 = 0010×000B

5: IICS0 = 00000001B

Remark : Always generated

: Generated only when SPIE0 = 1

×: Don’t care

(ii) When WTIM0 = 1 (an address mismatch after restart (extension code))

1 3 4 62 5

ST AD6-AD0 R/W D7-D0 ST AD6-AD0 D7-D0 SPACK R/W ACKACK ACK

1: IICS0 = 0001×110B

2: IICS0 = 0001××00B

3: IICS0 = 0010×010B

4: IICS0 = 0010×110B

5: IICS0 = 0010××00B

6: IICS0 = 00000001B

Remark : Always generated

: Generated only when SPIE0 = 1

×: Don’t care
