RL78/G15 CHAPTER 14 INTERRUPT FUNCTIONS

R01UH0959EJ0110 Rev.1.10 Page 619 of 765

Mar 7, 2023

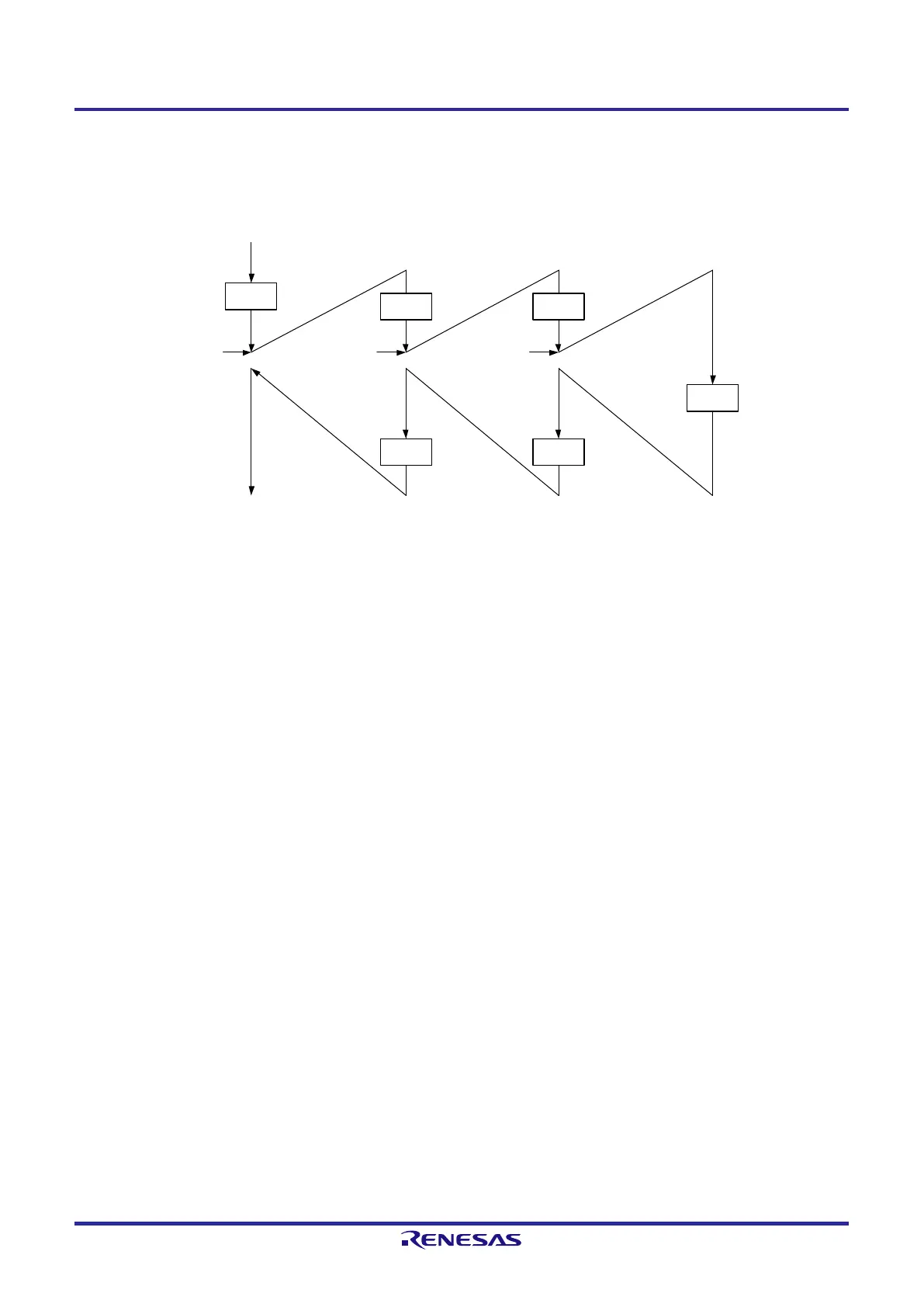

Figure 14-10. Examples of Multiple Interrupt Servicing (1/2)

Example 1. Multiple interrupt servicing occurs twice

RETI

Main processing INTxx processing INTyy processing INTzz processing

INTxx

(PR = 11)

INTyy

(PR = 10)

INTzz

(PR = 01)

IE = 0 IE = 0 IE = 0

IE = 1 IE = 1 IE = 1

During servicing of interrupt INTxx, two interrupt requests, INTyy and INTzz, are acknowledged, and multiple interrupt

servicing takes place. Before each interrupt request is acknowledged, the EI instruction must always be issued to enable

interrupt request acknowledgment.
