RL78/G15 CHAPTER 15 STANDBY FUNCTION
R01UH0959EJ0110 Rev.1.10 Page 631 of 765
Mar 7, 2023
(2) STOP mode release
The STOP mode can be released by the following two sources.
a) STOP mode release by unmasked interrupt request
When an unmasked interrupt request is generated, the STOP mode is released. After the oscillation stabilization time
has elapsed, if interrupt acknowledgment is enabled, vectored interrupt servicing is carried out. If interrupt
acknowledgment is disabled, the next address instruction is executed.

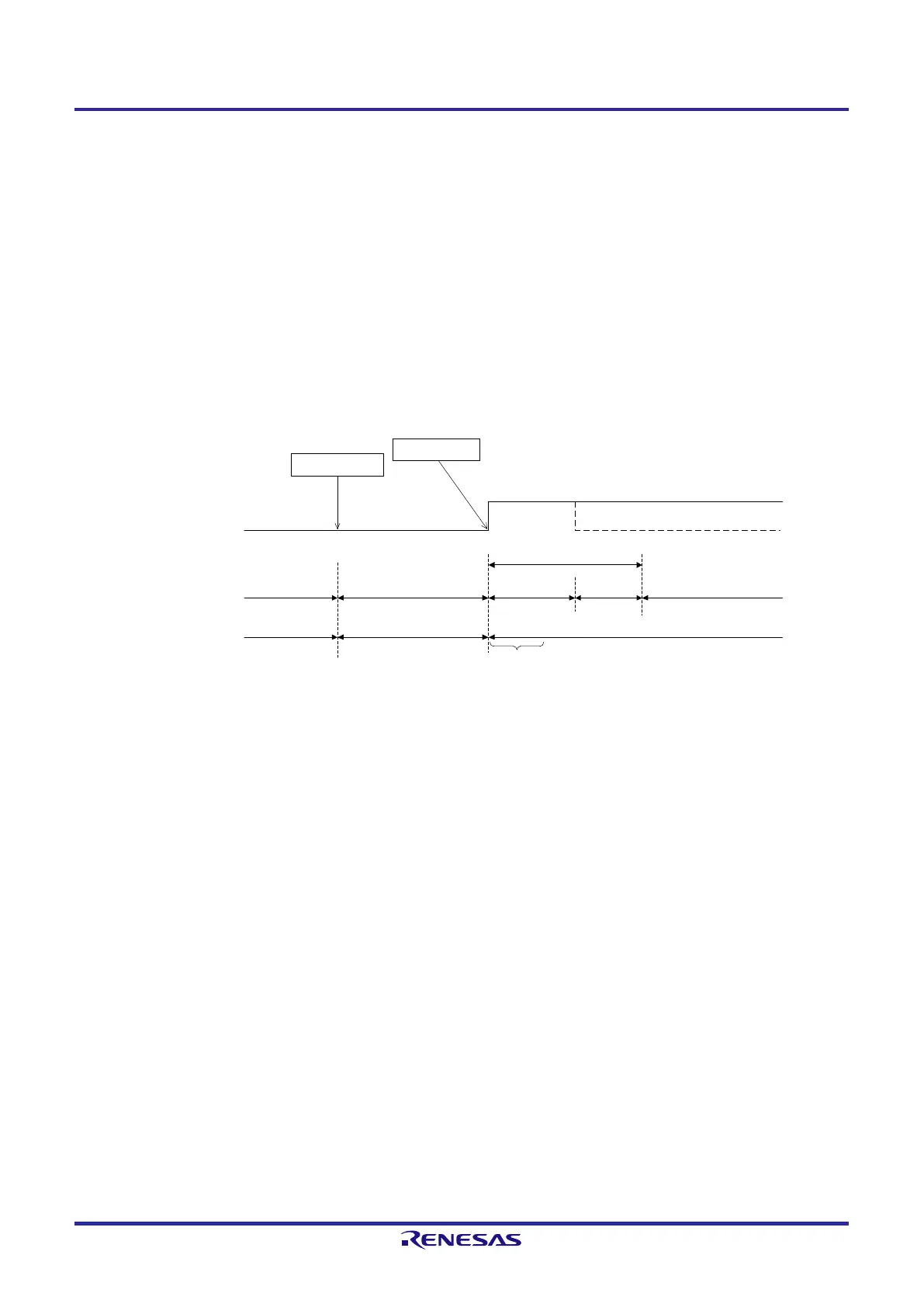

Figure 15-3. STOP Mode Release by Interrupt Request Generation (1/3)
(1) When high-speed on-chip oscillator clock is used as CPU clock
Standby release
signal
Note 1
Supply of the clock
is stopped
Oscillates
Wait for oscillation
accuracy stabilization
Status of CPU
High-
speed on-chip
oscillator clock
Normal operation
(high-speed on-chip
oscillator clock
)
STOP mode
Oscillates
Normal operation
(high-speed on-chip oscillator clock)
Interrupt request
Wait
Oscillation stopped
STOP mode release time
Note 2
STOP instruction
Note 1. For details of the standby release signal, see Figure 14-1 Basic Configuration of Interrupt Function.
Note 2. STOP mode release time: Supply of the clock is stopped: 27 µs (TYP.)
[Wait]
When vectored interrupt servicing is carried out: 8 clocks
When vectored interrupt servicing is not carried out: 2 clocks
Remark 1. The clock supply stop time varies depending on the temperature conditions and STOP mode period.
Remark 2. The broken lines indicate the case when the interrupt request that has released the standby mode is
acknowledged.
To Next Page
