RL78/G15 CHAPTER 19 FLASH MEMORY

R01UH0959EJ0110 Rev.1.10 Page 680 of 765

Mar 7, 2023

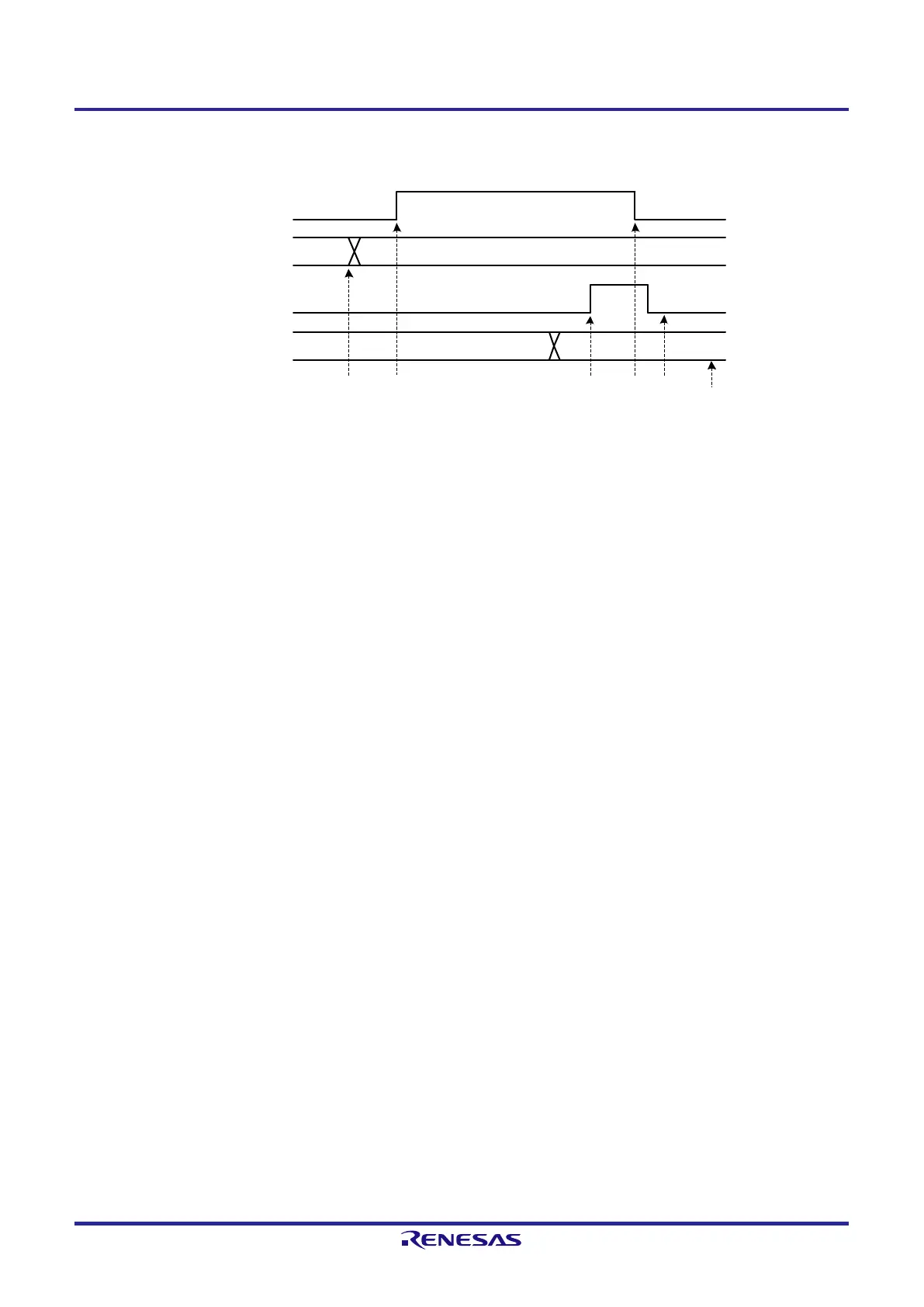

Figure 19-16. Flash Memory Sequencer Starting and Ending Processing

FSSQ SQST

FSSQ SQMDx

FSASTH

.SQEND

FSASTL.**ER

> <2> <3> <4>

<5>

<6>

<1> Set up operation.

<2> Set the SQST bit (the sequencer starts operating and the CPU enters the wait state).

<3> The CPU wait state is released.

<4> Clear the SQST bit (the sequencer stops operating).

<5> Check the sequencer operation end status flag.

<6> Check the error flag.
