REXROTH EFC 3610 Series User Manual

1.1 C3
2
nd
environment, QP, I > 100 A (class
A, group 2, I > 100 A)
1.2 C3
2
nd
environment, AV, I > 100 A (class
A, group 2, I > 100 A)
2.1 C3
2
nd
environment, QP, I ≤ 100 A (class
A, group 2, I ≤ 100 A)
2.2 C3
2
nd
environment, AV, I ≤ 100 A (class
A, group 2, I ≤ 100 A)
3.1 C2
1
st
environment, QP (1
st
environment,
even if source of interference in 2
nd
environment) (class A, group 1)
3.2 C2
1
st
environment, AV (1
st
environment,
even if source of interference in 2
nd
environment) (class A, group 1)
4.1 C1
1
st
environment, QP (1
st
environment,
even if source of interference in 2
nd
environment) (class B, group 1)
4.2 C1
1
st
environment, AV (1
st
environment,
even if source of interference in 2
nd
environment) (class B, group 1)

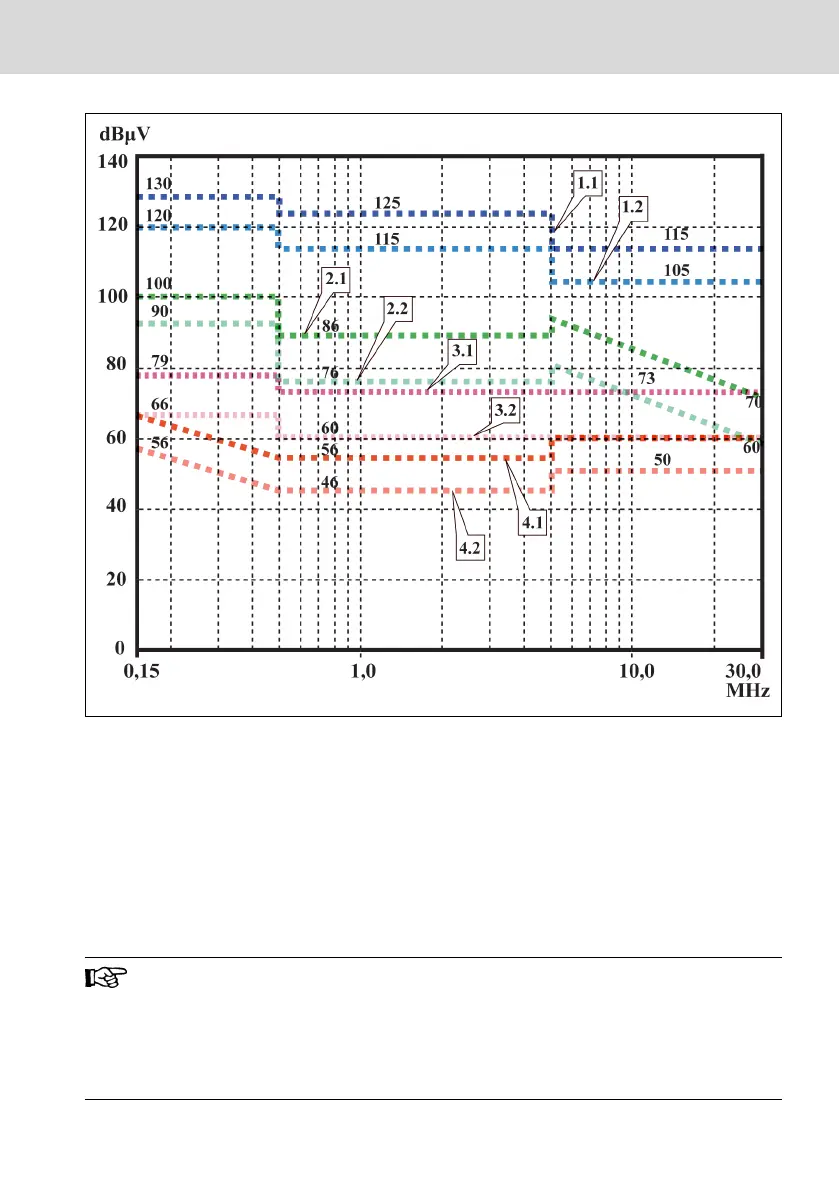

Fig. 9-2: Limit values for line-based disturbances (IEC 61800-3); limit characteristic through
frequency range
● Limit value for 1
st
environment is also relevant, if source of
interference of 2
nd
environment affects 1
st
environment
● Designations “class” and “group” according to CISPR 11
● QP: measuring method quasi peak measurement
● AV: measuring method arithmetic averaging
EFC x610 Series Bosch Rexroth AG
Electromagnetic Compatibility (EMC)
DOK-RCON03-EFC-X610***-IT05-EN-P
69/389
