REXROTH EFC 3610 Series - Motor Parameter Auto-Tuning

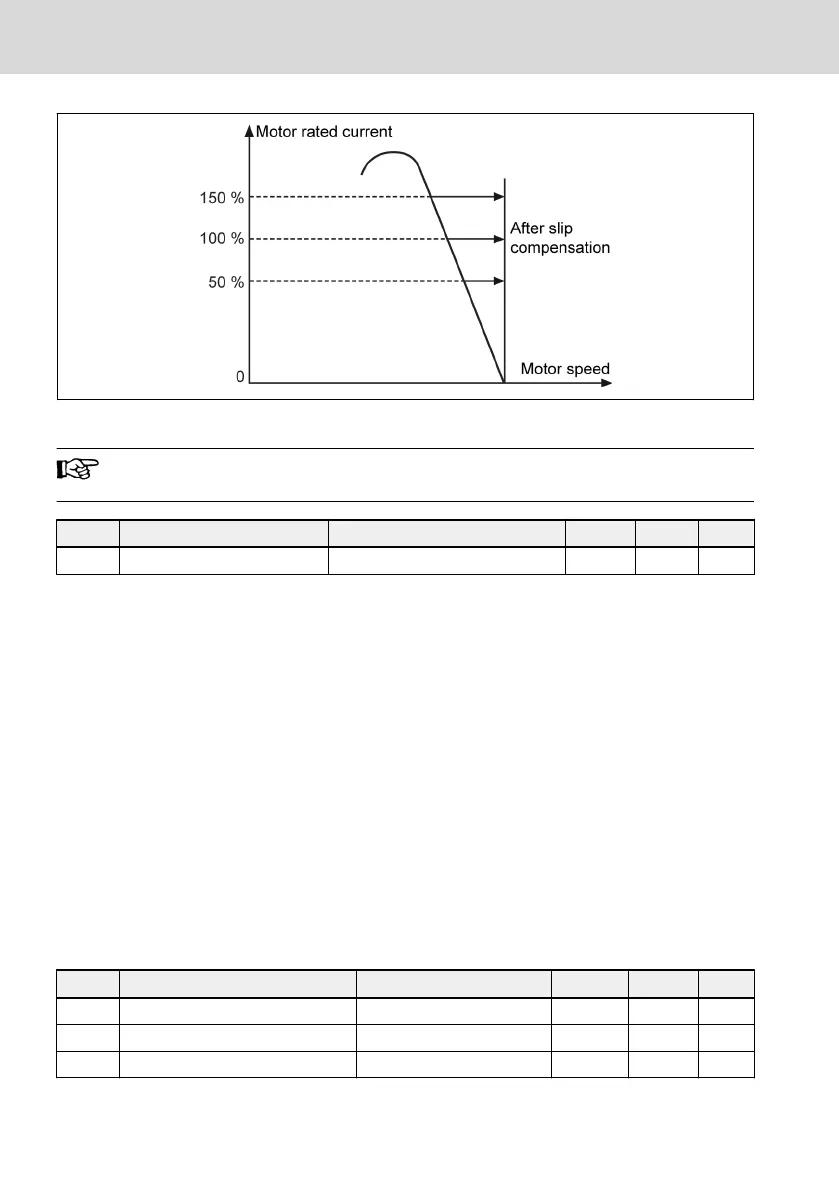

Fig. 12-58: Slip frequency compensation
If the slip frequency compensation is excessively large, the motor
speed may exceed the synchronous speed.
Code Name Setting range Default Min. Attri.
C1.12 Motor rated slip frequency 0.00...20.00 Hz DOM 0.01 Run
By default, this parameter will be set automatically according to the basic motor
parameters. The value can be adjusted with the following equations:
● n
s
= f
n
x 60 / p
● s = (n
s
- n
n
) / n
s
● fs = s x f
n
n
s
: synchronous speed; f
n
: rated frequency
p: numbers of pole pairs; s: rated slip
n
n
: rated speed; f
s
: rated slip frequency
Motor parameter auto-tuning
Function description
With the configuration of motor nameplate parameters, the frequency converter
can run in V/f control. In addition, the following parameters are calculated auto-
matically based on the motor nameplate parameters:
Code
Name Setting range Default Min. Attri.
C1.20 Motor no-load current 0.00...[C1.07] A DOM 0.01 Stop
C1.21 Stator resistance 0.00...50.00 Ω DOM 0.01 Stop
C1.22 Rotor resistance 0.00...50.00 Ω DOM 0.01 Stop
Bosch Rexroth AG
Functions and Parameters
EFC x610 Series
212/389
DOK-RCON03-EFC-X610***-IT05-EN-P
