Frequency setting sources combination
It is possible to combine the two frequency setting sources for complicated ap-
plications.
f
SRC1
First frequency setting source
f
SRC2
Second frequency setting source
f
Set
Setting frequency

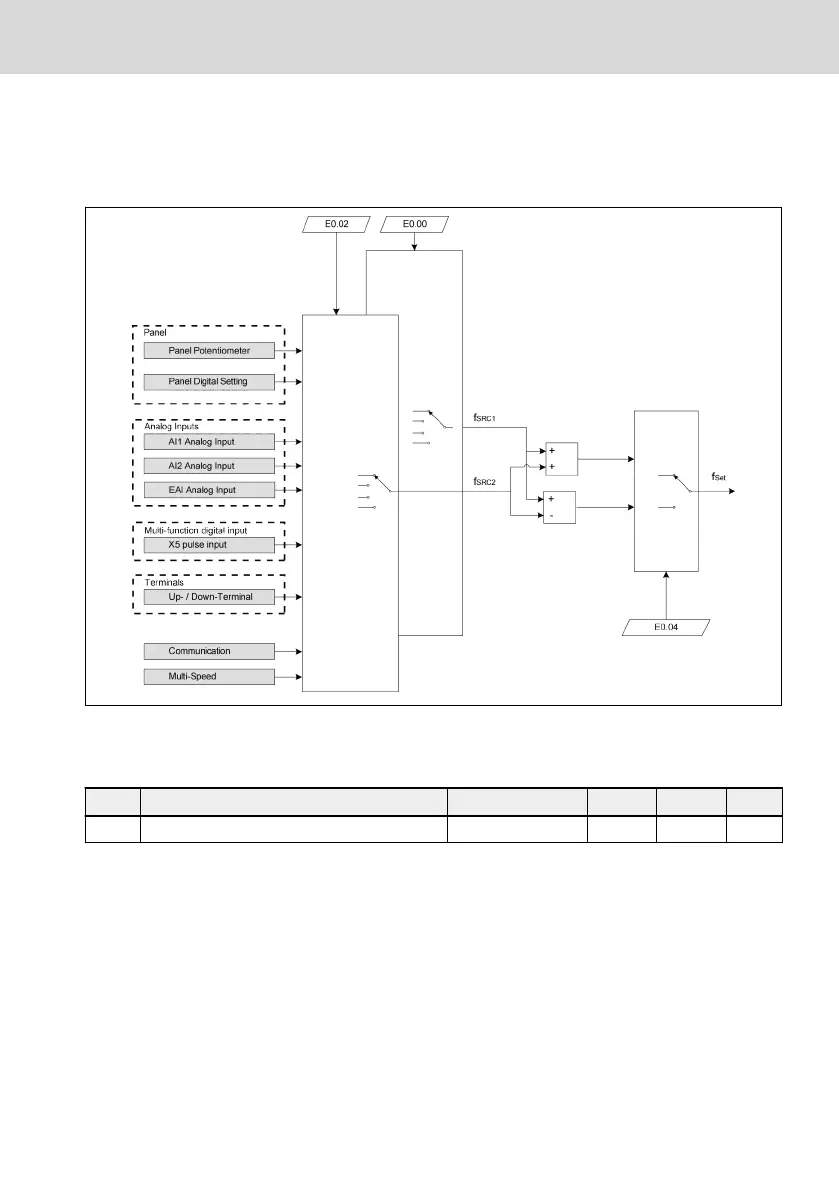

Fig. 12-11: Combination of frequency sources
Code
Name Setting range Default Min. Attri.
E0.04 Frequency setting source combination 0...2 0 – Stop
● 0: No combination
By default, actual setting frequency is set by 'First frequency setting source'.
'Second frequency setting source' can be activated by one of digital inputs,
see chapter "Frequency setting source switching" on page 130.
● 1: First frequency setting + Second frequency setting
The actual setting frequency is the result of the addition operation of the first
and second frequency setting sources.
● 2: First frequency setting - Second frequency setting
The actual setting frequency is the result of the subtraction operation of the
first and second frequency setting sources.
EFC x610 Series
Bosch Rexroth AG
Functions and Parameters
DOK-RCON03-EFC-X610***-IT05-EN-P
131/389
