16.4 Removable Components Maintenance
16.4.1 Construction Overview
1 Operating panel
2 I/O interface adapter
3 Housing / Frame
4 Internal components
5 Heat sink / Radiator
6 Heat sink mounting plate
7 Back fan / Fan for heat sink
8 Back fan cover
9 Front fan cover
10 Front fan / Fan for internal components

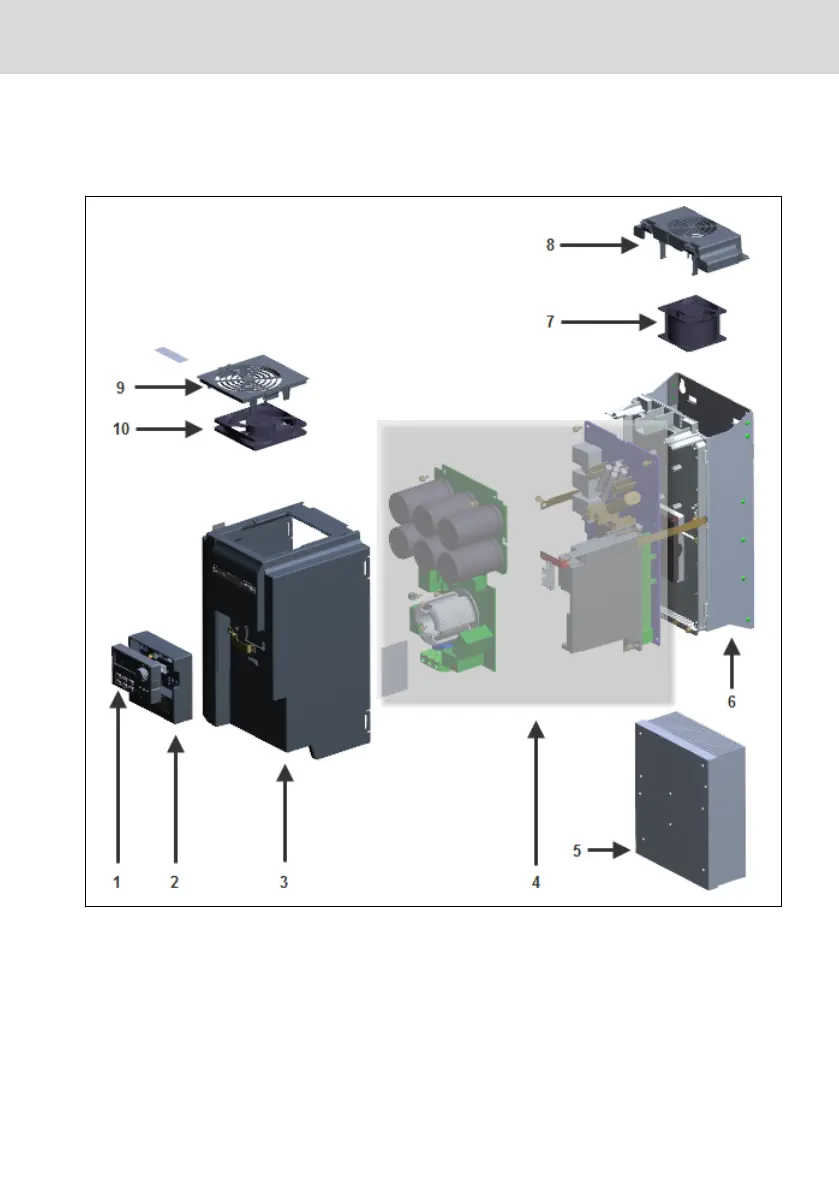

Fig. 16-1: Construction overview
EFC x610 Series
Bosch Rexroth AG
Maintenance
DOK-RCON03-EFC-X610***-IT05-EN-P
317/389
