12.8.5 Indication of Simple PLC Status
An indication signal is active via 'DO1 output' or 'Relay 1 output' when a simple
PLC cycle or stage is complete.
Define the output with respective indication signals as below:
Code Name Setting range Default Min. Attri.
E2.01 DO1 output setting
7: Simple PLC stage com-
plete
8: Simple PLC cycle com-
plete
1 – Stop
E2.15 Relay 1 output selection 1 – Stop
H8.20 EDO output setting 1 – Stop
H8.21 Extended relay output selection 1 – Stop
H9.00 Extended relay 1 output selection 0 – Stop
H9.01 Extended relay 2 output selection 0 – Stop
H9.02 Extended relay 3 output selection 0 – Stop
H9.03 Extended relay 4 output selection 0 – Stop
● 7: Simple PLC stage complete
f
out
Output frequency
d
out
Digital output
t Time

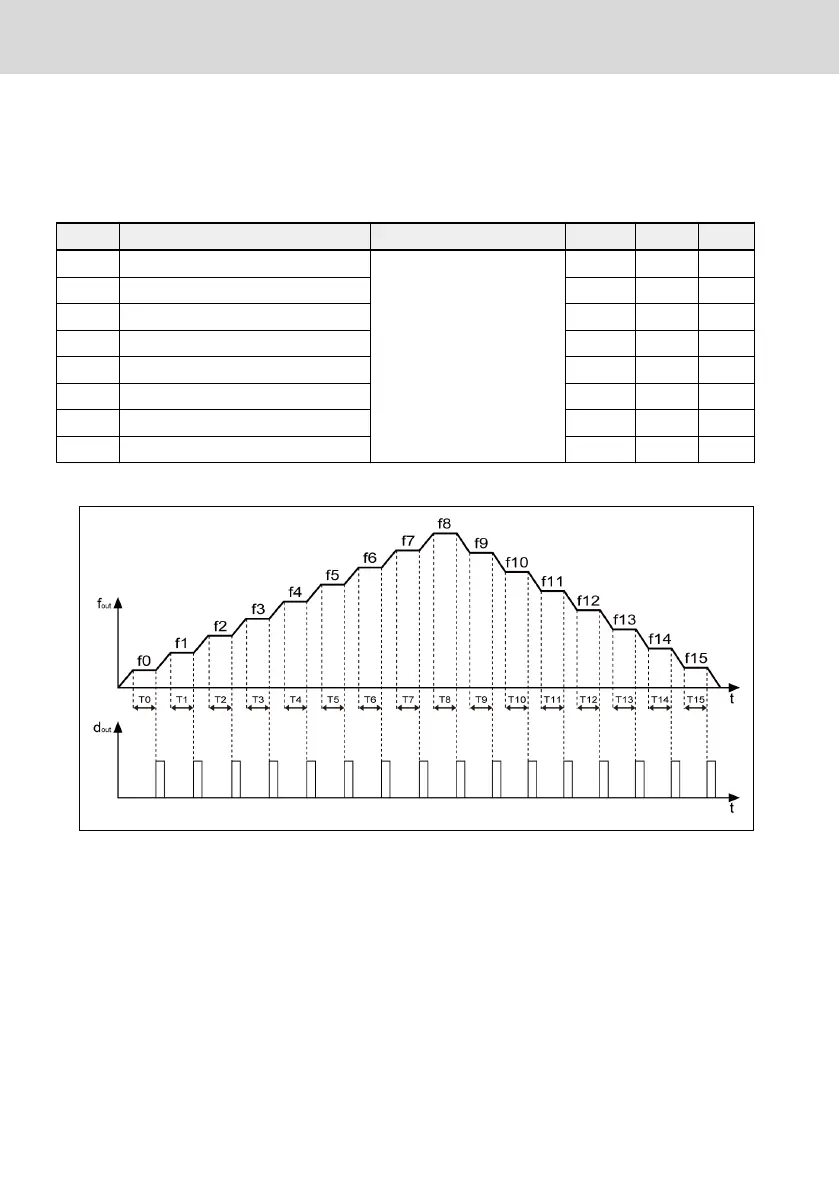

Fig. 12-43: Simple PLC stage complete
When a stage is complete, a pulse signal is active for the duration of 0.5 s.
Any stage with running time of 0.0 s will be skipped without pulse output.
– If the running time of one stage is so short that it finishes before the 'Sim-
ple PLC stage complete' signal of the previous stage is deactivated, the sig-
nal remains active and the pulse duration calculation is restarted.
– If the setting frequency of next stage is lower than that of the current
stage, the frequency converter decelerates to the next stage with the de-
celeration time of current stage.
Bosch Rexroth AG
Functions and Parameters
EFC x610 Series
184/389
DOK-RCON03-EFC-X610***-IT05-EN-P
