If the set frequency of next stage is higher than that of the current stage,
the frequency converter accelerates to the next stage with the acceleration
time of next stage.
● 8: Simple PLC cycle complete
f
out
Output frequency
d
out
Digital out
t Time

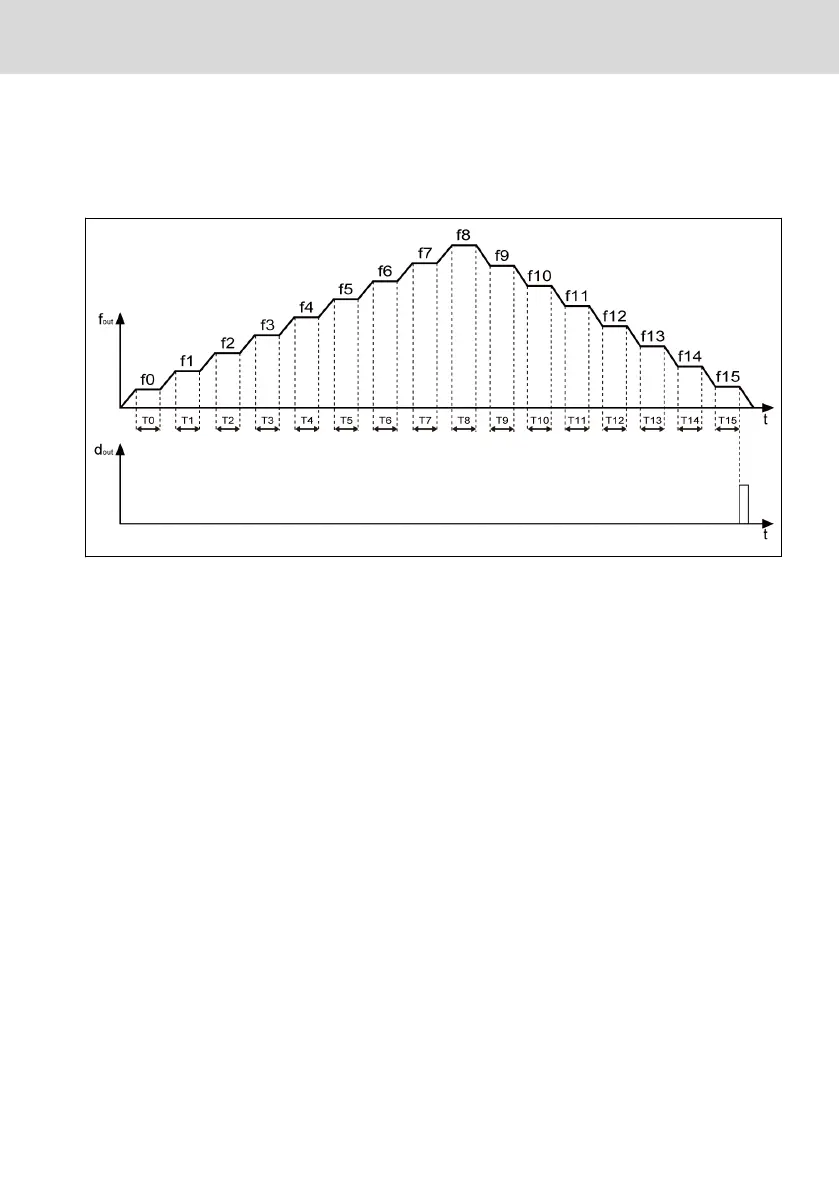

Fig. 12-44: Simple PLC cycle complete
When a cycle is complete, a pulse signal is active for the duration of 0.5 s.
EFC x610 Series
Bosch Rexroth AG
Functions and Parameters
DOK-RCON03-EFC-X610***-IT05-EN-P
185/389
