REXROTH EFC 3610 Series User Manual

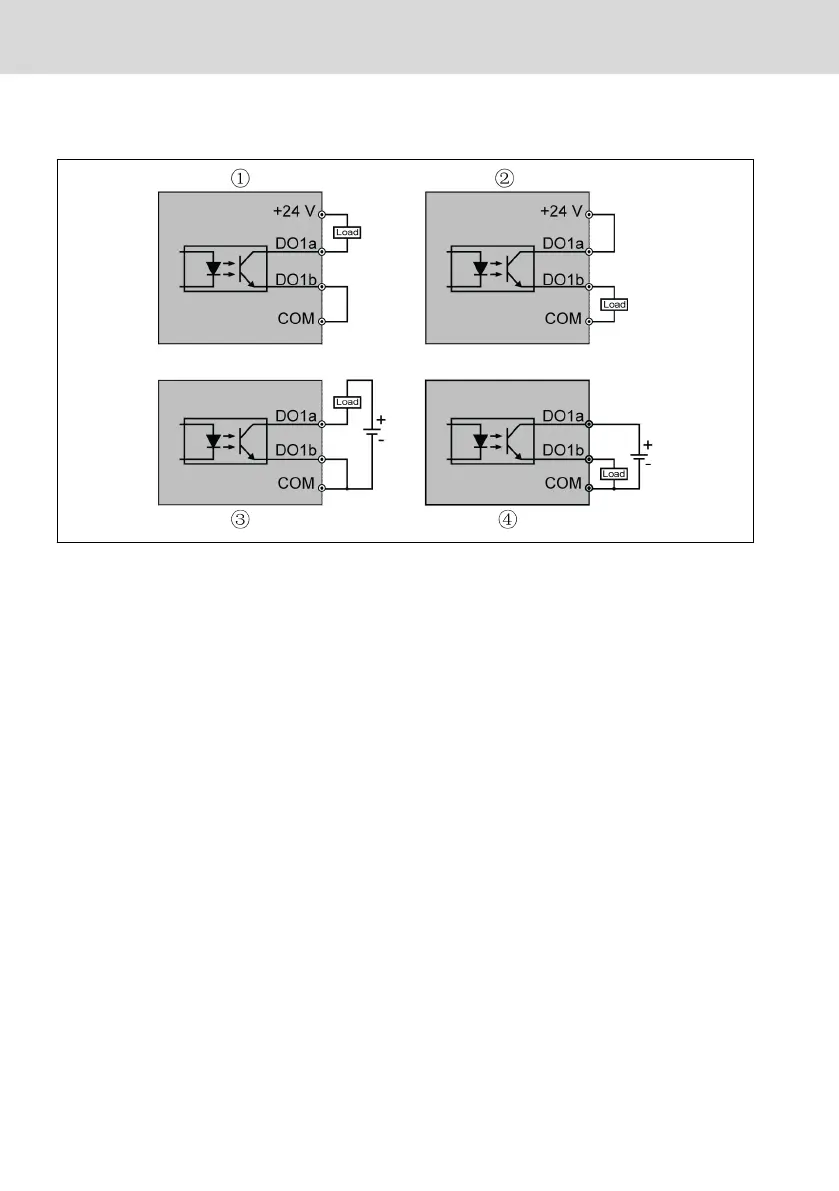

Digital output DO1a, DO1b load pull-up / pull-down wiring
① Load pull-up wiring with internal power
supply
② Load pull-down wiring with internal
power supply
③ Load pull-up wiring with external power
supply
④ Load pull-down wiring with external
power supply
Fig. 8-11: Digital output DO1a, DO1b load pull-up / pull-down wiring
● For internal supply, ONLY USE terminal +24 V and NEVER USE terminal +10 V
or +5 V!
● For external supply, its reference ground MUST be connected to terminal
COM!
Bosch Rexroth AG
Frequency Converter Wiring
EFC x610 Series
58/389
DOK-RCON03-EFC-X610***-IT05-EN-P
