5 Drive System Overview

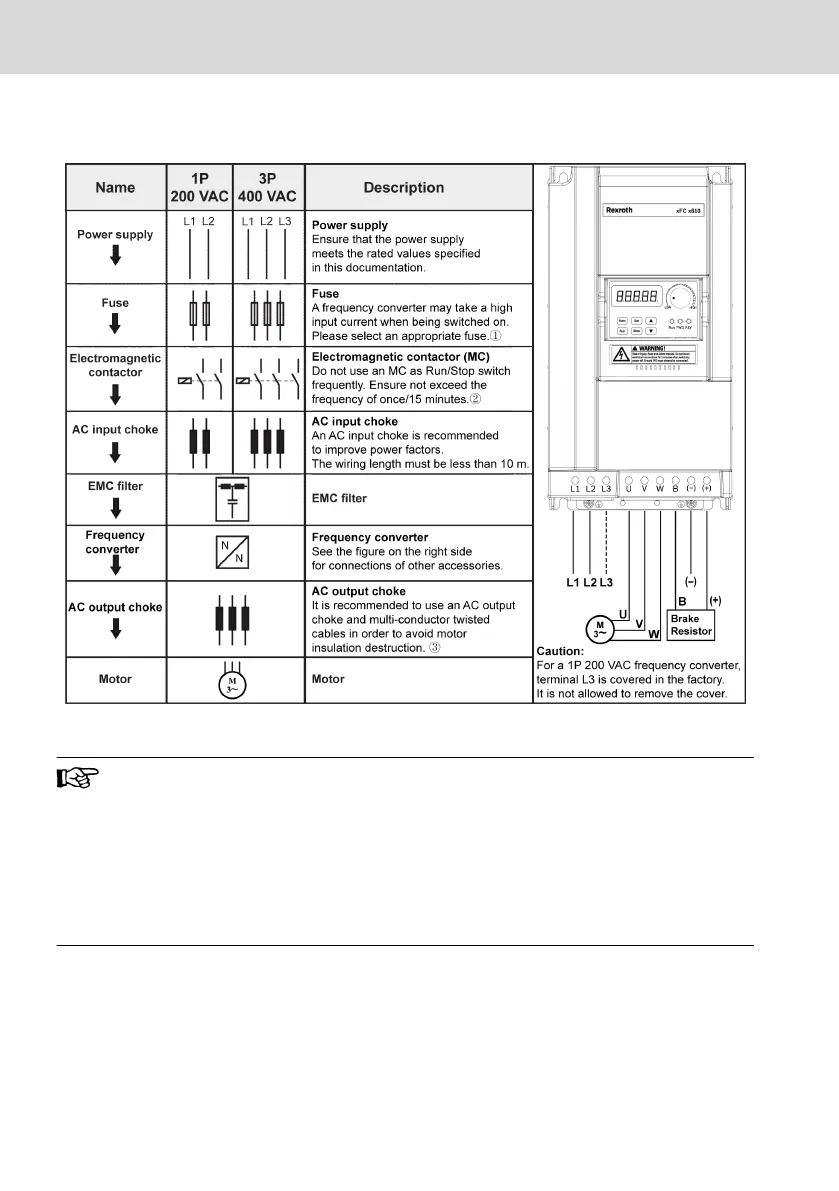

Fig. 5-1: Drive system overview
â‘
: To select an appropriate fuse, see chapter 8.2.1 "Power Cables"
on page 42.
â‘¡: Excessively frequent starting and stopping will shorten the life
time of relay contacts and DC-bus capacitors, and may destroy the
resistor for capacitor charging and current limitation.
â‘¢: Whether using an AC output choke or not depends on the factors
of: the length, shielding and distribution capacitance of the motor
cables, as well as the insulation of the motor.
Bosch Rexroth AG
Drive System Overview
EFC x610 Series
18/389
DOK-RCON03-EFC-X610***-IT05-EN-P
