15.11 Shielding Connector
The shielding layer of shielded cables must be reliably connected to the shield-
ing terminals of the frequency converter. Accessories (a connector and two
screws) for shielded cable connection are available for the connection conven-
ience.

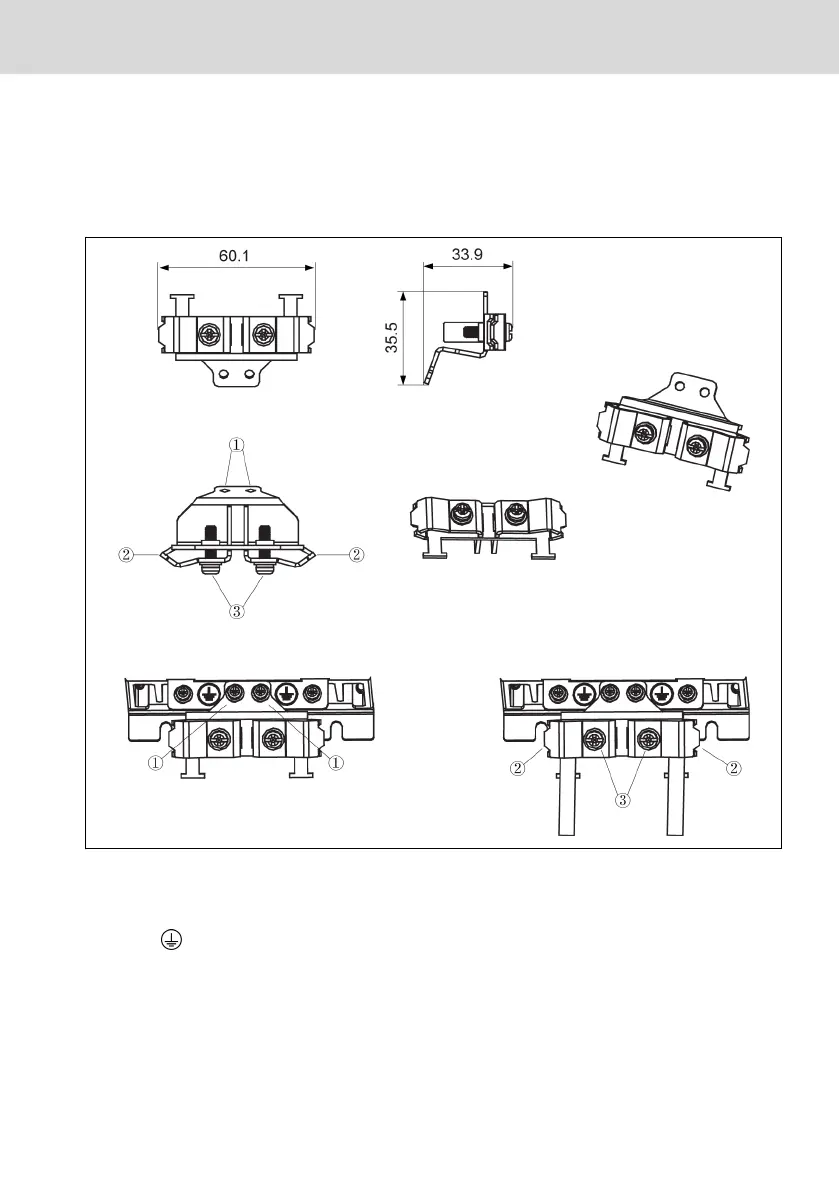

Fig. 15-28: Shielded cable connection with accessories for 0K40...4K00
Connection steps
Step 1: Place component â‘ of the connector on the two screw holes inside of
symbols and tighten the screws.
Step 2: Insert the shielded cables through component â‘¡ of the connector with
the shielding layer reliable contact with the metal.
Step 3: Tighten two screws of the accessories (component â‘¢).
