16.4.3
Disassembl
y of F
ans

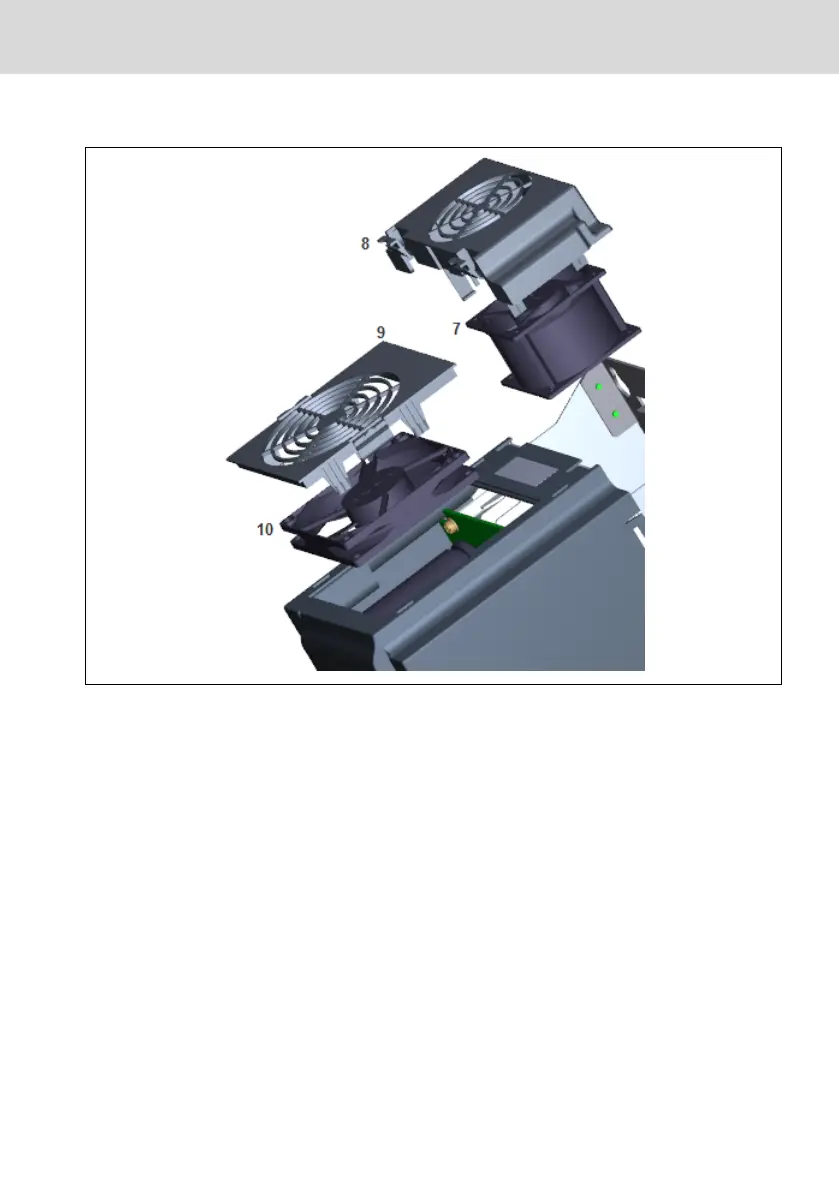

Fig. 16-3:
Disassembly of fan
●
St
ep 1: Press the buckle(s) on com
ponent 8 or 9 in the above figure
●
St
ep 2: Hold component 8 or 9 and lift it up
●
St
ep 3: Pull out component 7 or 10 slowl
y
●
St
ep 4: Disconnect the cable connector of com
ponent 7 or 10
EFC x610 Series
Bosch Re
xroth A
G
Maintenance
DOK-RCON03-EFC-X610***-IT05-EN-P
319/
389
350
352
