12.5 Run- / Stop- / Direction Command Source
12.5.1 Function Description
The Run- / Stop- / Direction Command can be configured by the following
means:
● First priority: PID control
● Second priority: Simple PLC
● Third priority: Jog function
● Fourth priority: Basic command sources
– 0: Operating panel
– 1: Digital inputs
– 2: Communication

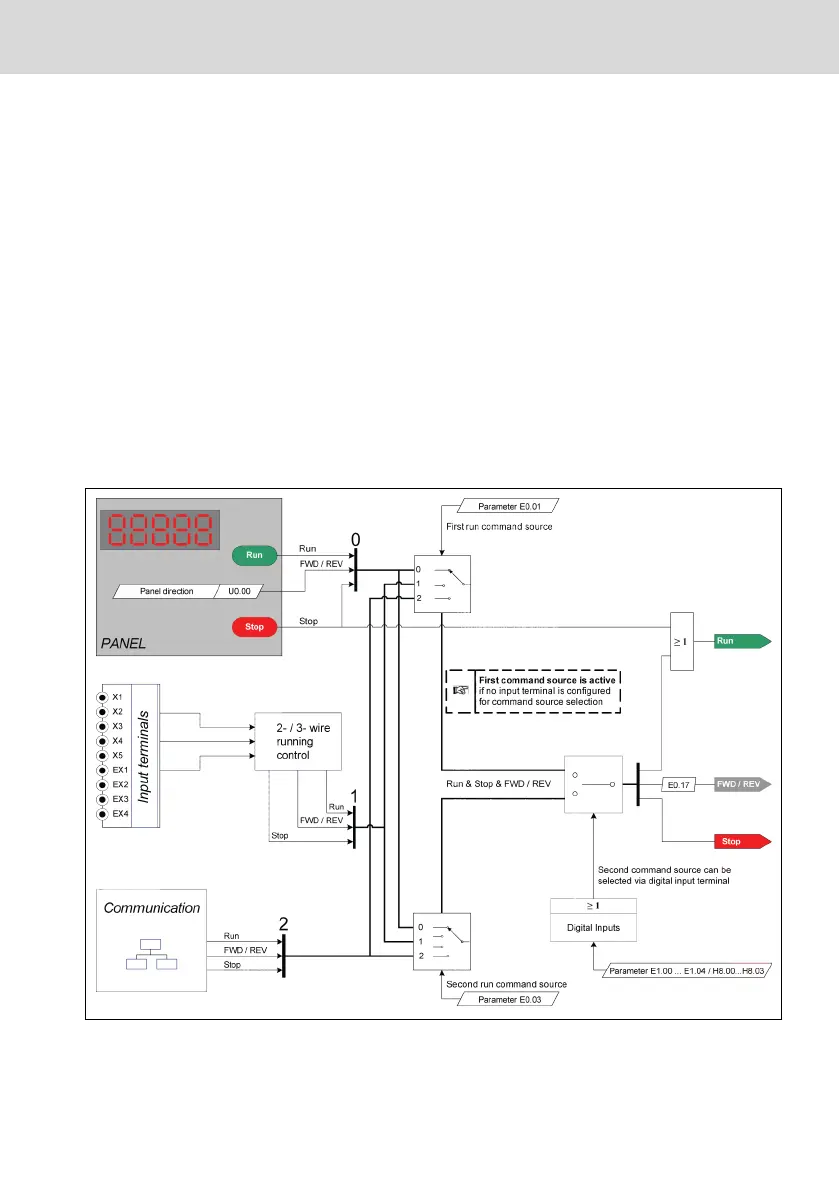

The basic Run- / Stop- / Direction command sources are shown in the figure be-
low:
Fig. 12-23: Run command sources
EFC x610 Series
Bosch Rexroth AG
Functions and Parameters
DOK-RCON03-EFC-X610***-IT05-EN-P
149/389
