15.3 Panel Mounting Plate
15.3.1 Function Description
With the operating panel mounted at the control cabinet, the user can operate
and control the frequency converter from the outside of the control cabinet con-
veniently. To realize this function, the user needs order the panel mounting plate
and its accessories additionally.
15.3.2 Recommended Opening Dimensions at Control Cabinet

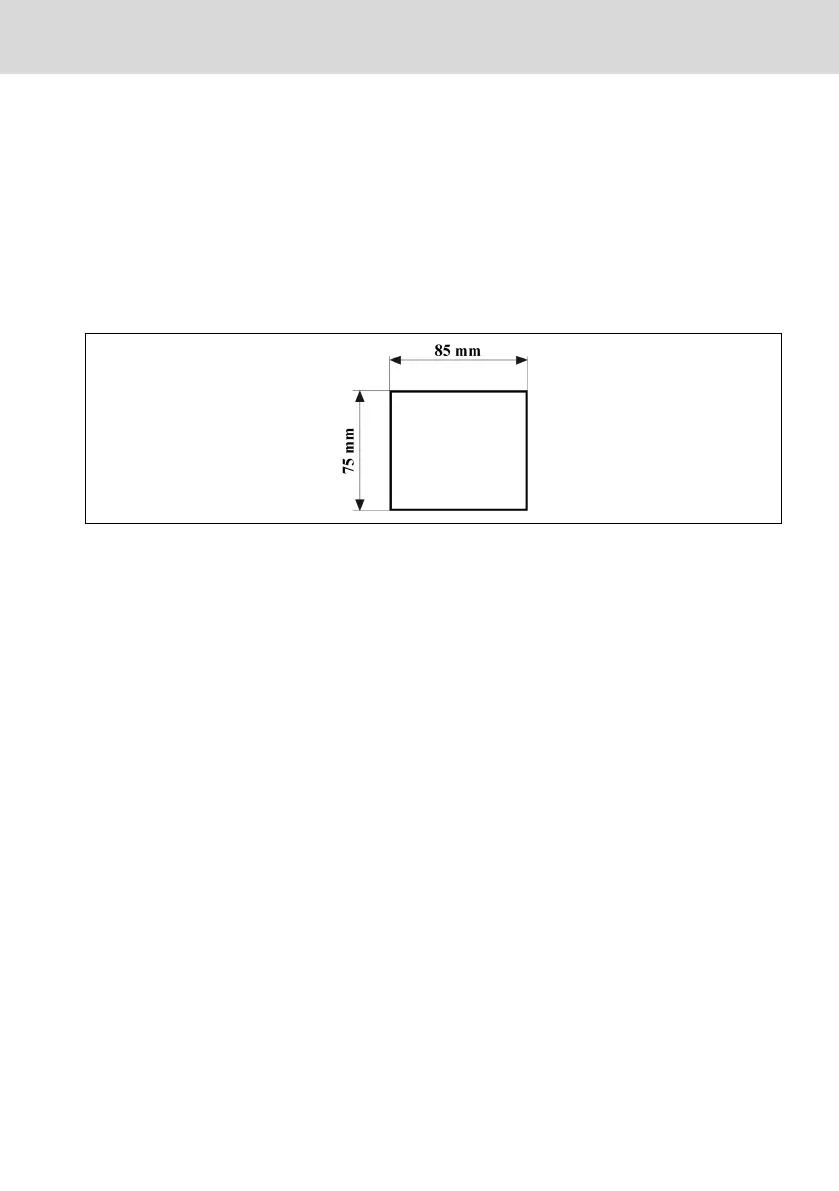

Fig. 15-1: Recommended opening dimensions at control cabinet
EFC x610 Series Bosch Rexroth AG
Accessories
DOK-RCON03-EFC-X610***-IT05-EN-P
287/389
