12.4.4 Output Frequency Limitation
Direct output frequency limitation
Code Name Setting range Default Min. Attri.
E0.08 Maximum output frequency 50.00...400.00 Hz 50.00 0.01 Stop
E0.09 Output frequency high limit [E0.10]...[E0.08] Hz 50.00 0.01 Run
E0.10 Output frequency low limit 0.00...[E0.09] Hz 0.00 0.01 Run
● Maximum output frequency
The allowed maximum output frequency of the frequency converter.
● Output frequency high limit
The allowed maximum output frequency according to the requirements in ac-
tual applications.
● Output frequency low limit
The allowed minimum output frequency according to the requirements in ac-
tual applications.
Behavior at low speed running
Code Name Setting range Default Min. Attri.
E0.15 Low speed running setting
0: Running at 0.00Hz
1: Running with low limit fre-
quency
0 – Stop
E0.16 Low speed frequency hysteresis 0.00...[E0.10] Hz 0.00 0.01 Stop
By default, the frequency converter runs at 0 Hz when the output frequency is
lower than [E0.10] 'Output frequency low limit'.
● [E0.15] = 0: Running at 0.00 Hz

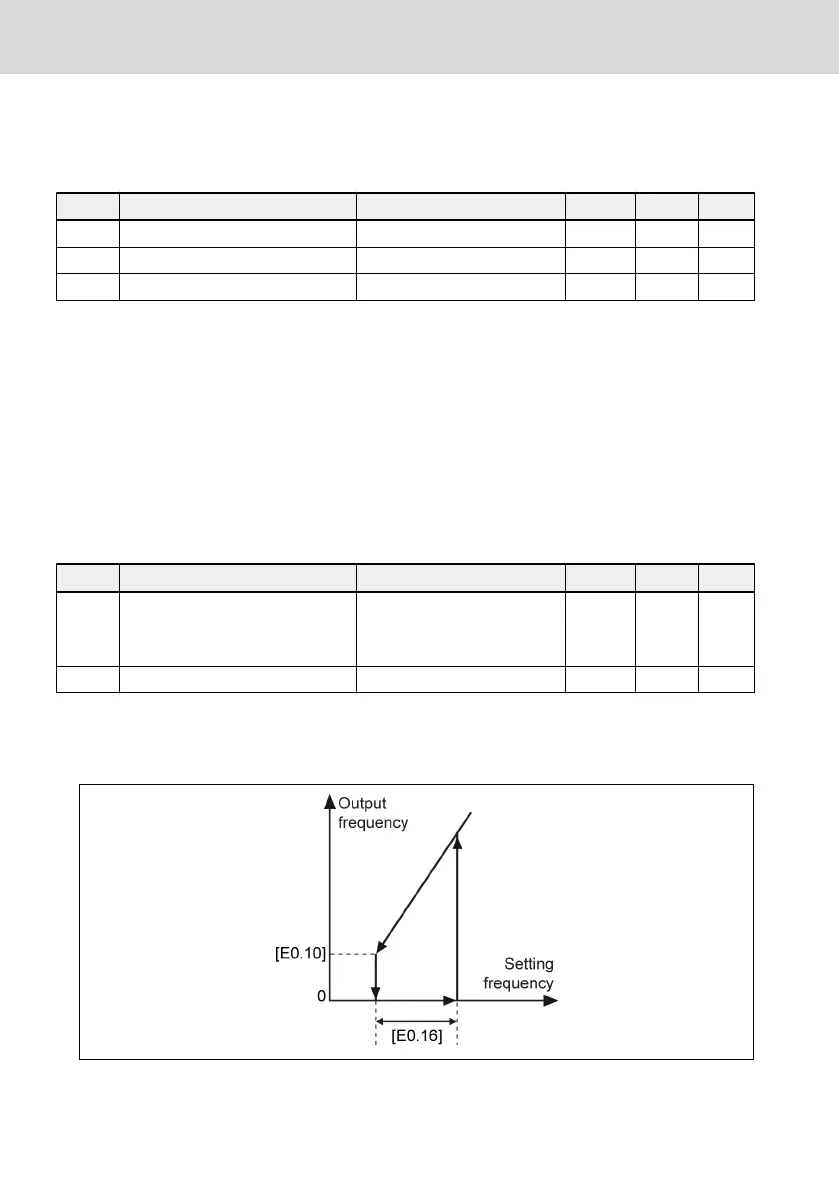

Fig. 12-21: Running at 0 Hz
Bosch Rexroth AG
Functions and Parameters
EFC x610 Series
146/389
DOK-RCON03-EFC-X610***-IT05-EN-P
