[E0.25] = 1: S-curve

① [E0.28] Acceleration starting phase

③ [E0.29] Acceleration stopping phase

④ [E0.28] Deceleration starting phase

⑥ [E0.29] Deceleration stopping phase

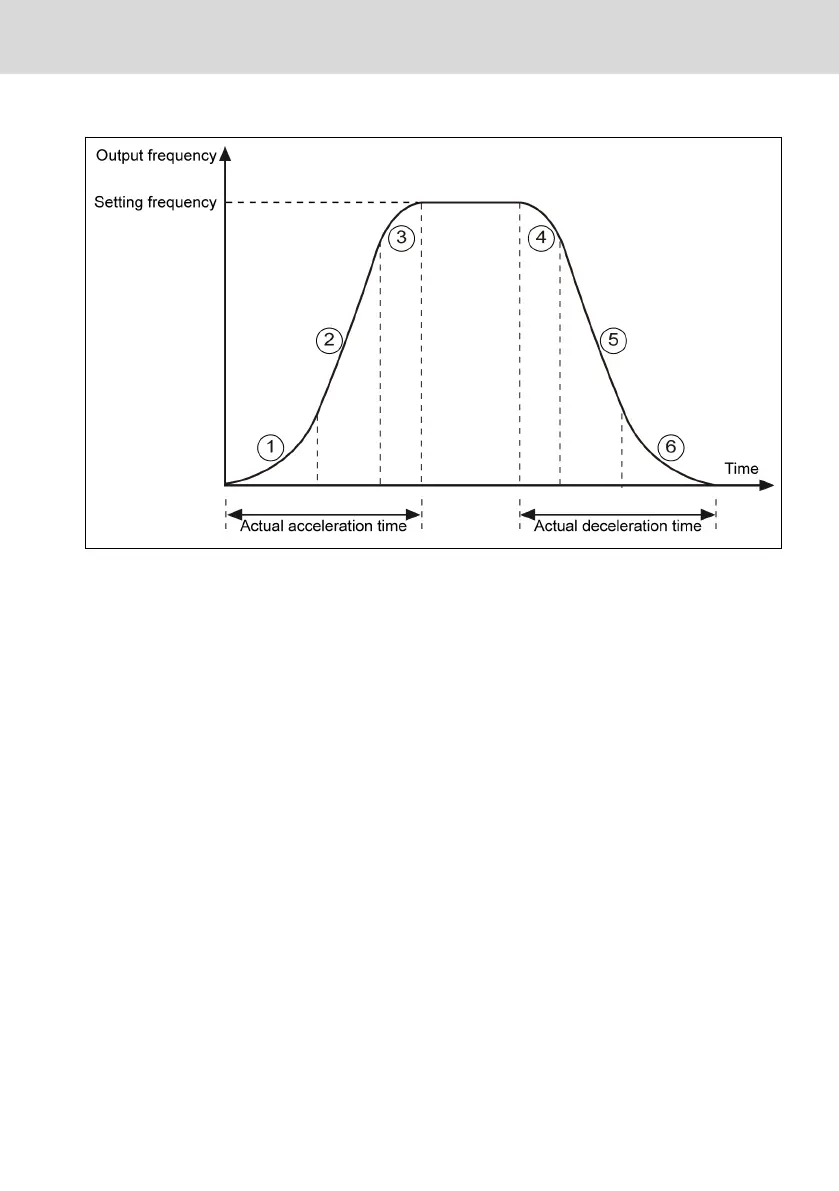

Fig. 12-20: S-curve acceleration and deceleration

Stage ①, ③: a percentage of setting acceleration time.

Stage ④, ⑥: a percentage of setting deceleration time.

EFC x610 Series

Bosch Rexroth AG

Functions and Parameters

DOK-RCON03-EFC-X610***-IT05-EN-P

145/389
