15.5.2 Extension Module Mounting

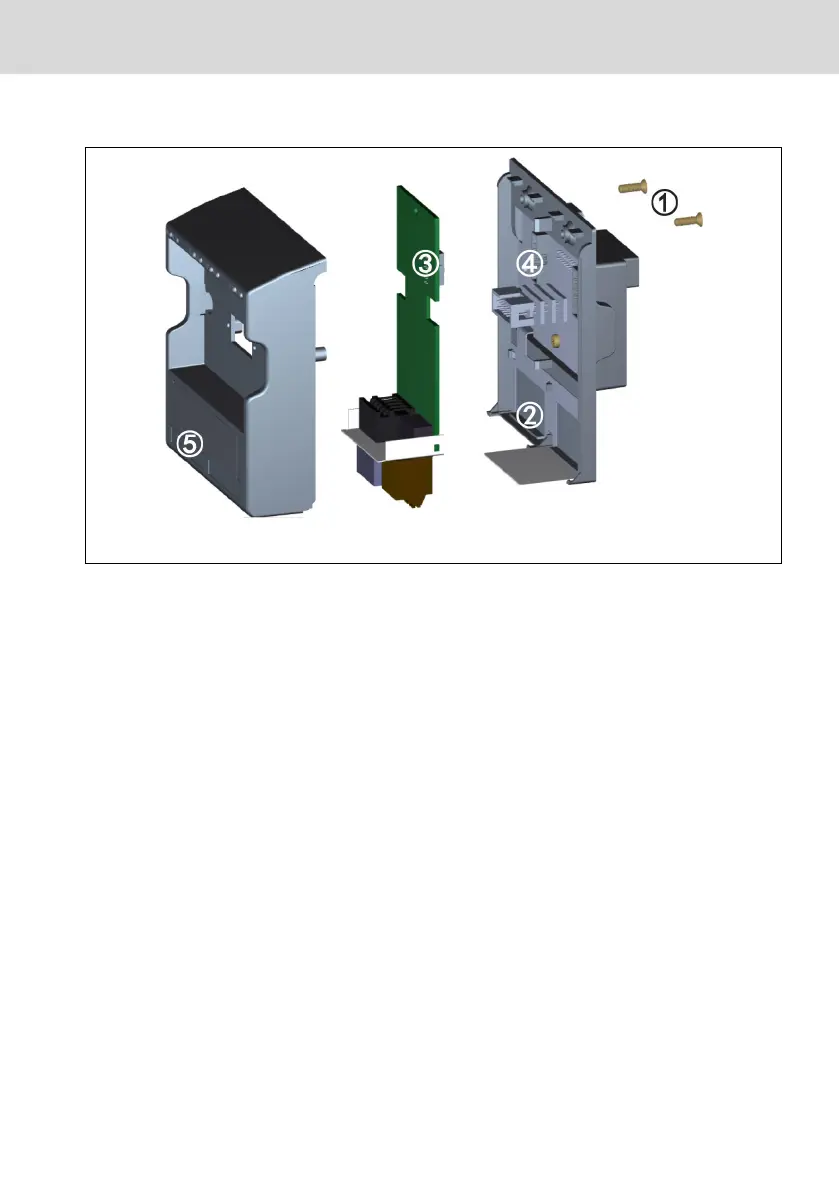

Fig. 15-7: Extension module mounting
1. Remove 2-M3 screws ① on back of the extension card module.
2. Remove the front cover of the extension card module.
3. Insert one extension card into the card slot with the metal plate beside the
extension card terminals placed in ②.
4. Push the extension card to achieve a stable connection of connector ③ (on
the back side of the extension card) with connector ④ (on the extension
card module).
5. Mount the front cover of the extension card module.
6. Tighten 2-M3 screws ① of the extension card module.
7. Attach an appropriate terminal label on the label indentation ⑤ located at
the lower section of the front cover. Terminal labels for various extension
cards are delivered together with each extension card.
