15.7 Communication Module

15.7.1 PROFIBUS Interface

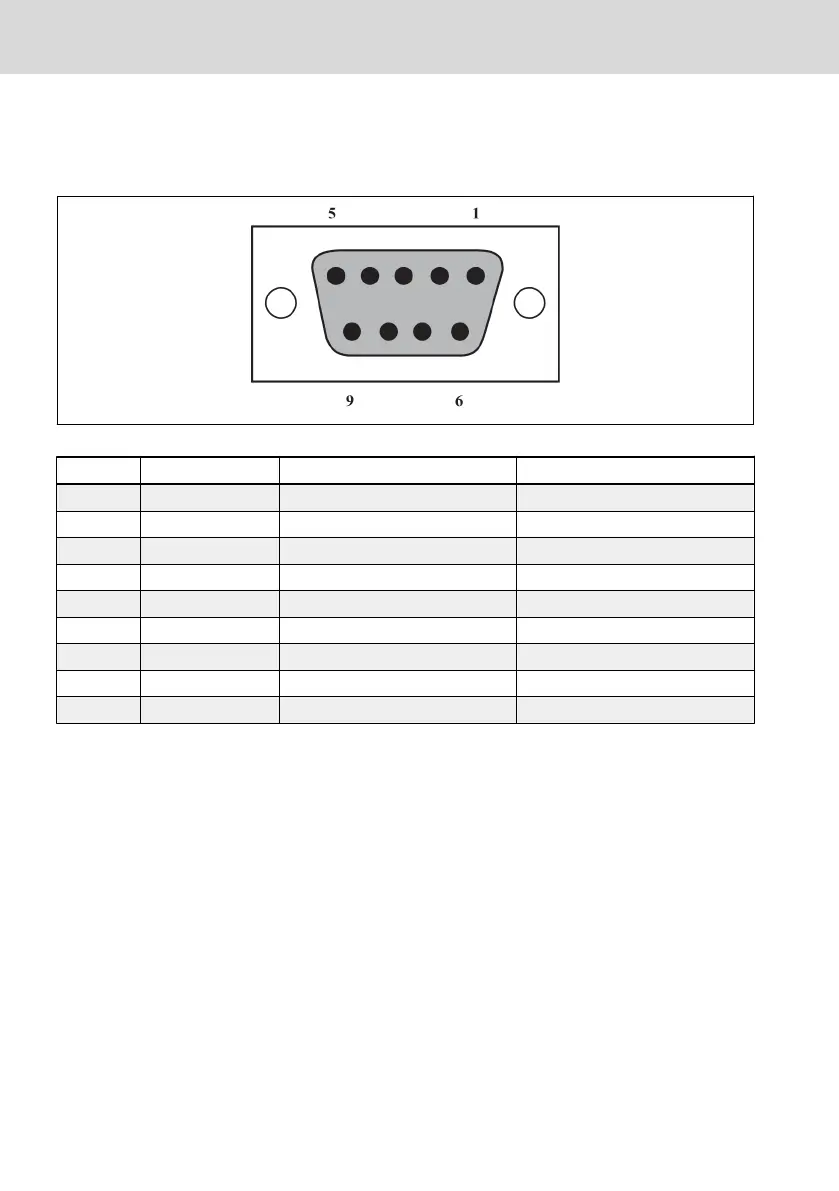

Fig. 15-12: PROFIBUS DB9 interface

Pin Terminal sign Terminal name Function description

1 NC – Reserved

2 NC – Reserved

3 PROFIBUS_B PROFIBUS terminal_B PROFIBUS data cable B

4 RTS Request for signal sending –

5 GND Power- –

6 Vcc Power+ –

7 NC – Reserved

8 PROFIBUS_A PROFIBUS terminal_A PROFIBUS data cable A

9 NC – Reserved

Tab. 15-2: Pin definition of PROFIBUS DB9 interface

Bosch Rexroth AG

Accessories

EFC x610 Series

296/389

DOK-RCON03-EFC-X610***-IT05-EN-P
