Analog input terminals (AI1, AI2, EAI, +10 V, +5 V, Earth and GND)

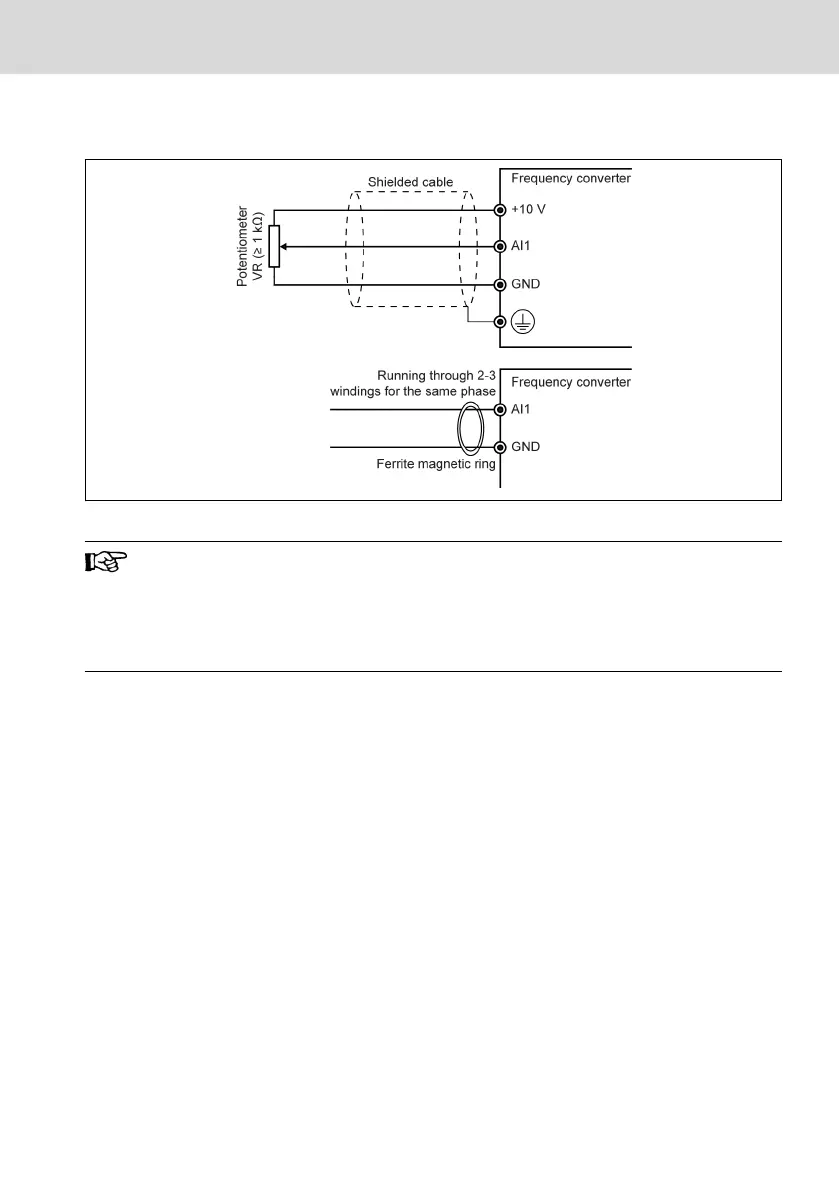

Fig. 8-12: Analog input terminals
● The figure for AI2 and +5 V is similar to the figure above.
● Incorrect operation may occur due to interference on the analog
signal. In such cases, connect a ferrite magnetic ring at the input
side of the analog signal, as shown above.
● The above figure is also valid for analog input EAI on I/O card.
EFC x610 Series Bosch Rexroth AG
Frequency Converter Wiring
DOK-RCON03-EFC-X610***-IT05-EN-P
59/389
