REXROTH EFC 3610 Series - Operating Panel and Dust Cover; LED Panel; LED Display

10 Operating Panel and Dust Cover
10.1 LED Panel
The LED panel is removable and composed of two areas: display and buttons.
The display shows mode settings and operating state of the frequency converter.
The buttons allow users to program the frequency converter.

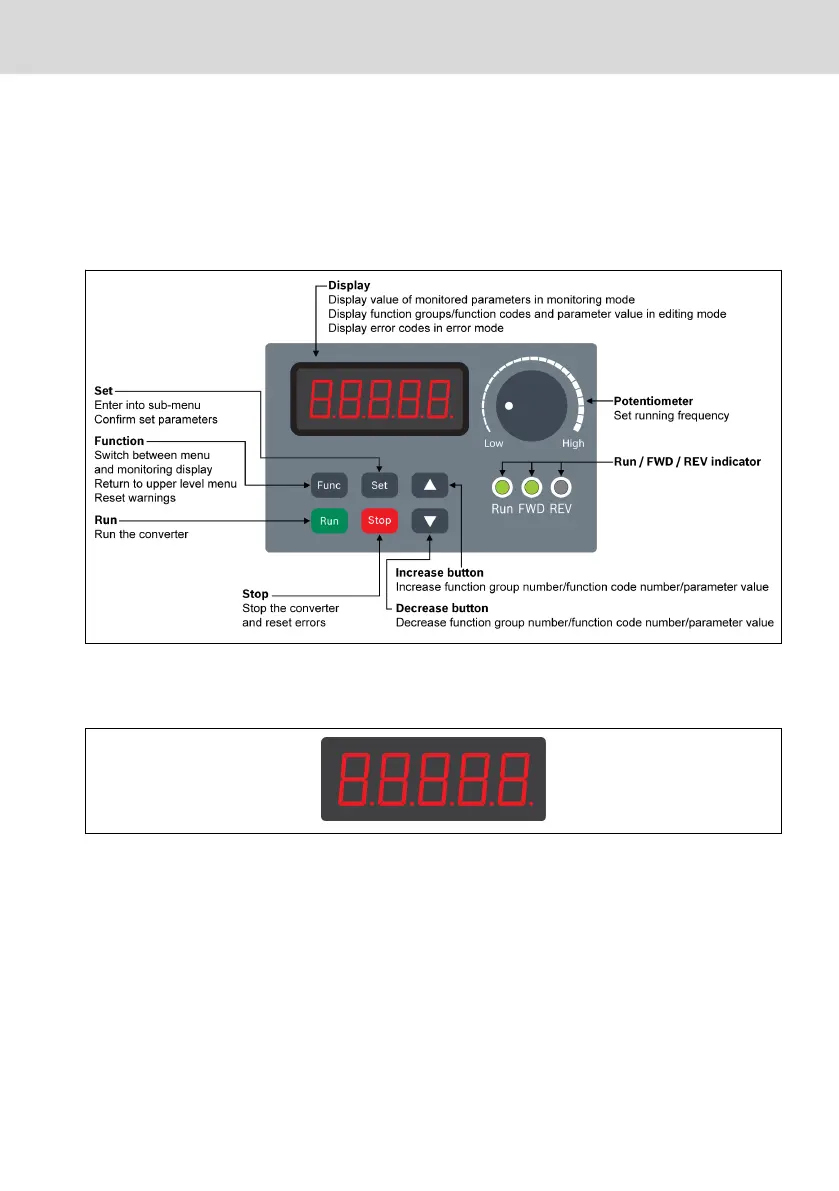

Fig. 10-1: LED panel
10.2 LED Display
Fig. 10-2: LED display
EFC x610 Series Bosch Rexroth AG
Operating Panel and Dust Cover
DOK-RCON03-EFC-X610***-IT05-EN-P
87/389
