12.8 Simple PLC
12.8.1 Function Description
Simple PLC is an automatic running mode based on the current acceleration /
deceleration time, setting frequency, duration and rotation direction.
Simple PLC consists of 16 stages, each of which has its own settings of acceler-
ation time, deceleration time, setting frequency, rotation direction and duration.

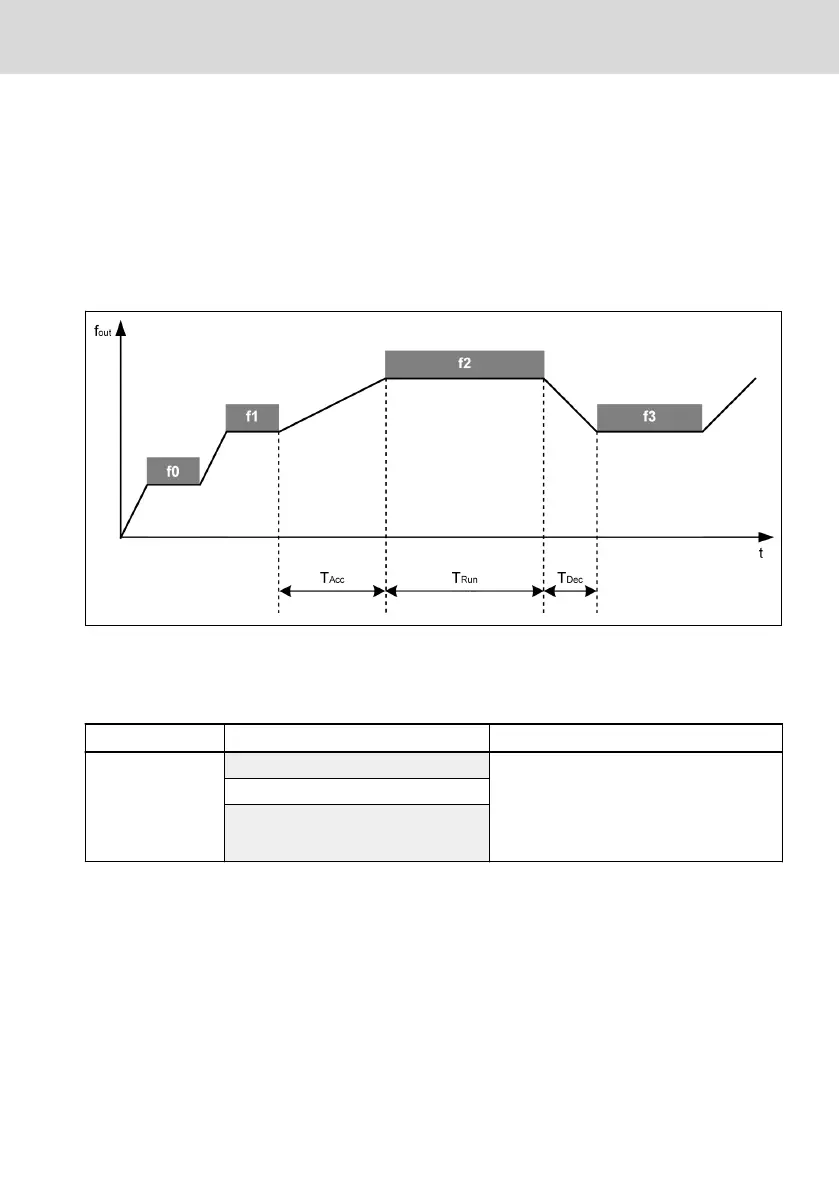

An example of simple PLC control is shown in the figure below:
f
out
Output frequency
t Time
T
Acc
Acceleration time
T
Run
Stage running time
T
Dec
Deceleration time
Fig. 12-42: Example of simple PLC control
Frequency source Run command source Rotation direction and Acc. / Dec. time
Simple PLC
Operating panel [E3.60], [E3.62], [E3.64], [E3.66]
[E3.68], [E3.70], [E3.72], [E3.74]
[E3.76], [E3.78], [E3.80], [E3.82]
[E3.84], [E3.86], [E3.88], [E3.90]
Multi-function digital input
Communication
Tab. 12-16: Simple PLC configuration
EFC x610 Series Bosch Rexroth AG
Functions and Parameters
DOK-RCON03-EFC-X610***-IT05-EN-P
179/389
