6.2.2 Derating of Electric Data
Derating and ambient temperature
The ambient temperature for Frequency Converter EFC x610 is -10...55 ℃. Out
of this range, there will be no possibility to install and run the frequency con-
verter, even the performance data have been additionally reduced.
● If the ambient temperature is -10...45 ℃, there will be no need for derating.
● If the ambient temperature is 45...55 ℃, derating must be performed as indi-
cated in the figure below.
f
Ta
Load factor
Ta_work Ambient temperature range for
operation with rated data
Ta_work_red Ambient temperature range for
operation with reduced rated
data

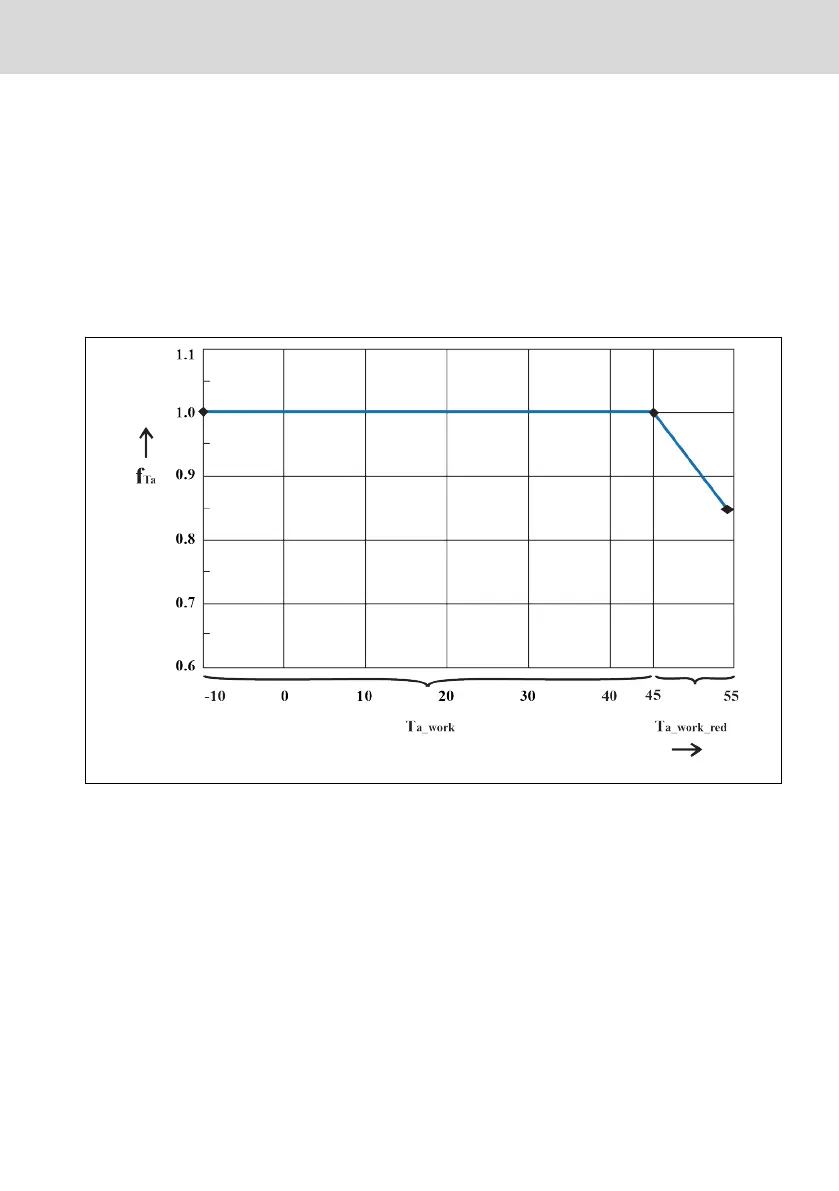

Fig. 6-1: Derating and ambient temperature (℃)
EFC x610 Series Bosch Rexroth AG
Frequency Converter Overview
DOK-RCON03-EFC-X610***-IT05-EN-P
25/389
