8.3 Terminals
8.3.1 Power Terminals

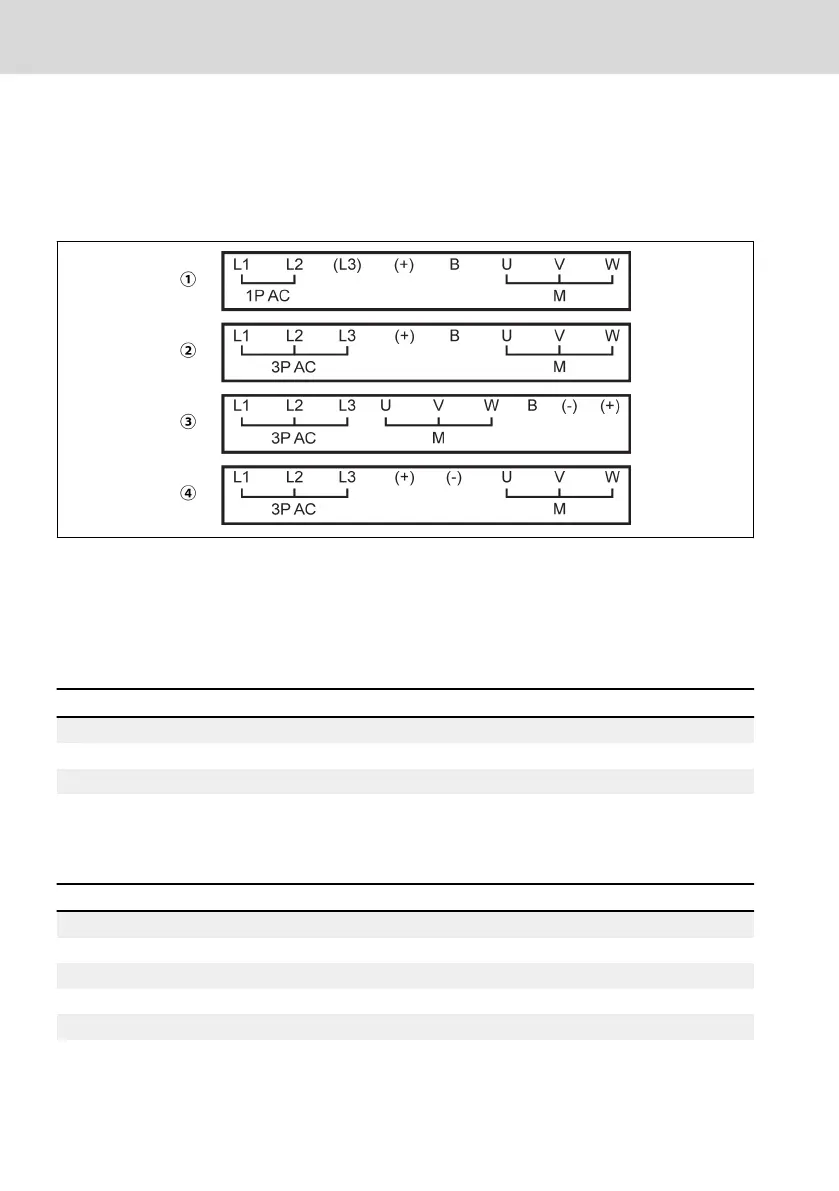

Power Terminals Figure
① 1P 200 VAC 0K40...2K20
② 3P 400 VAC 0K40...4K00
③ 3P 400 VAC 5K50...22K0
④ 3P 400 VAC 30K0...90K0
1P AC: Single phase AC power supply
3P AC: Three phases AC power supply
M: For three phases motor connection
Fig. 8-4: Power terminals
Power Terminals Description
Terminal
Description
L1, L2 Mains supply input terminals
U, V, W Converter output terminals
B External brake resistor terminal
(+) DC positive bus terminal
Tab. 8-5: 1P 200 VAC power terminals description
Terminal Description
L1, L2, L3 Mains supply input terminals
U, V, W Converter output terminals
B External brake resistor terminal
(-) DC negative bus terminal (only available with models of 5K50 and above)
(+) DC positive bus terminal
Tab. 8-6: 3P 400 VAC power terminals description
Bosch Rexroth AG
Frequency Converter Wiring
EFC x610 Series
48/389
DOK-RCON03-EFC-X610***-IT05-EN-P
