Step 3
Push the operating panel in the direction perpendicular to the mounting plate:

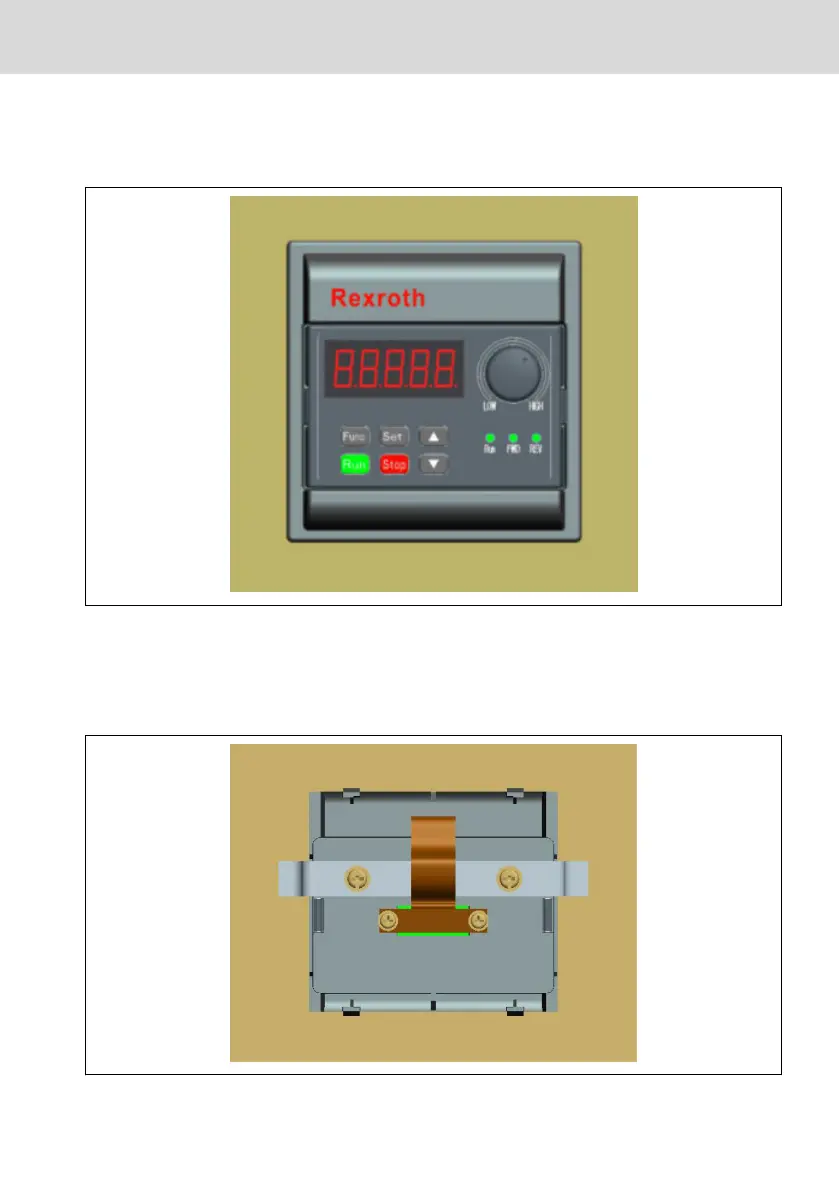

Fig. 15-4: Mount the operating panel (front view)
Step 4
Connect the operating panel to the frequency converter with the connection ca-
ble and fix the cable connector on the mounting plate with 2 M3x10 screws:
Fig. 15-5: Connect and fix the cable (back view)
EFC x610 Series Bosch Rexroth AG
Accessories
DOK-RCON03-EFC-X610***-IT05-EN-P
289/389
