8 Frequency Converter Wiring
8.1 Wiring Diagram

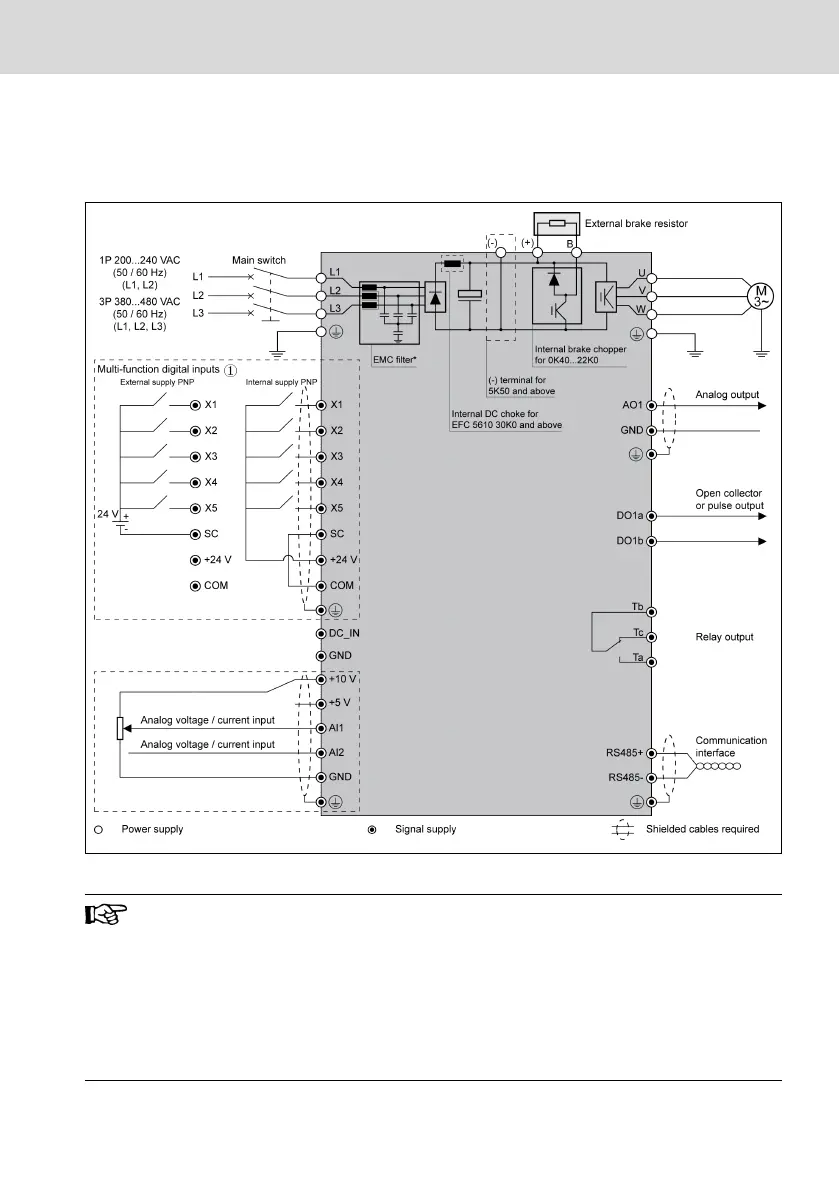

Fig. 8-1: Wiring diagram
●
For cable size, fuse, screw torque, see chapter 8.2 "Cable Specifi-
cations" on page 42.
● For terminals, see chapter 8.3 "Terminals" on page 48.
● ①: NPN modes, see fig. 8-10 "Digital input NPN / PNP wiring" on
page 57.
● *: Can be disconnected by disassembly of a screw.
● Pulse input can be ONLY set via 'Multi-function digital input X5'.
