REXROTH EFC 3610 Series User Manual

15.6.2 Relay Card
Relay card terminals label

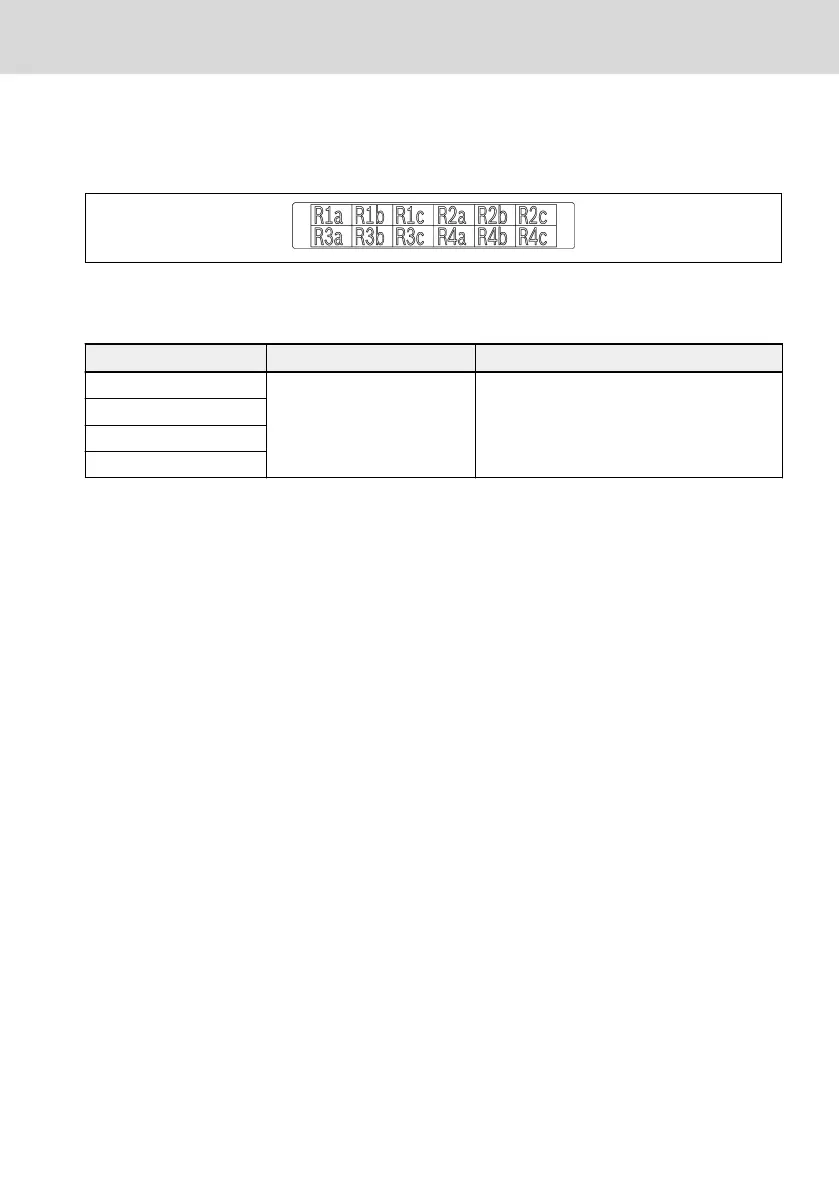

Fig. 15-11: Relay card terminals label
Relay card terminals descriptions
Terminal Signal requirement Description
R1a, R1c, R1b
Rated capacity:
250 VAC, 3 A
30 VDC, 3 A
See Group H9
R1b, R2b, R3b, R4b are relay outputs
shared connections
R2a, R2c, R2b
R3a, R3c, R3b
R4a, R4c, R4b
Relay card terminals wiring
For details on relay terminals wiring, see chapter "Relay output terminals" on
page 60.
EFC x610 Series Bosch Rexroth AG
Accessories
DOK-RCON03-EFC-X610***-IT05-EN-P
295/389
