For applications, in which the running frequency cannot be too low, define the
low limit frequency running mode when the output frequency is lower than
[E0.10] 'Output frequency low limit'.
● [E0.15] = 1: Running with low limit frequency

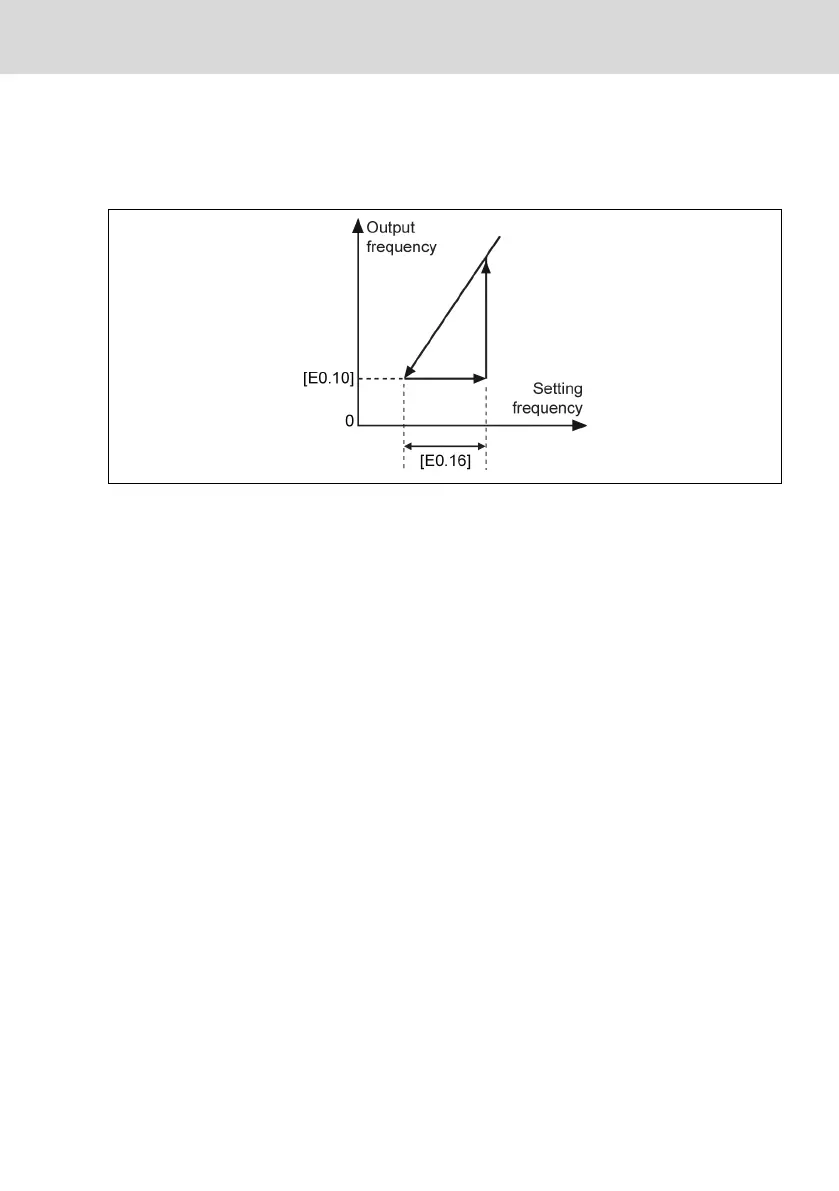

Fig. 12-22: Run with low limit frequency
A hysteresis band is set by [E0.16]. If actual setting frequency is higher than
[E0.10] + [E0.16] again, the output frequency will accelerate from [E0.10] to the
setting frequency according to the actual acceleration time.
If [E0.10] < [E0.16], [E0.10] will be set as [E0.16] automatically.
EFC x610 Series Bosch Rexroth AG
Functions and Parameters
DOK-RCON03-EFC-X610***-IT05-EN-P
147/389
