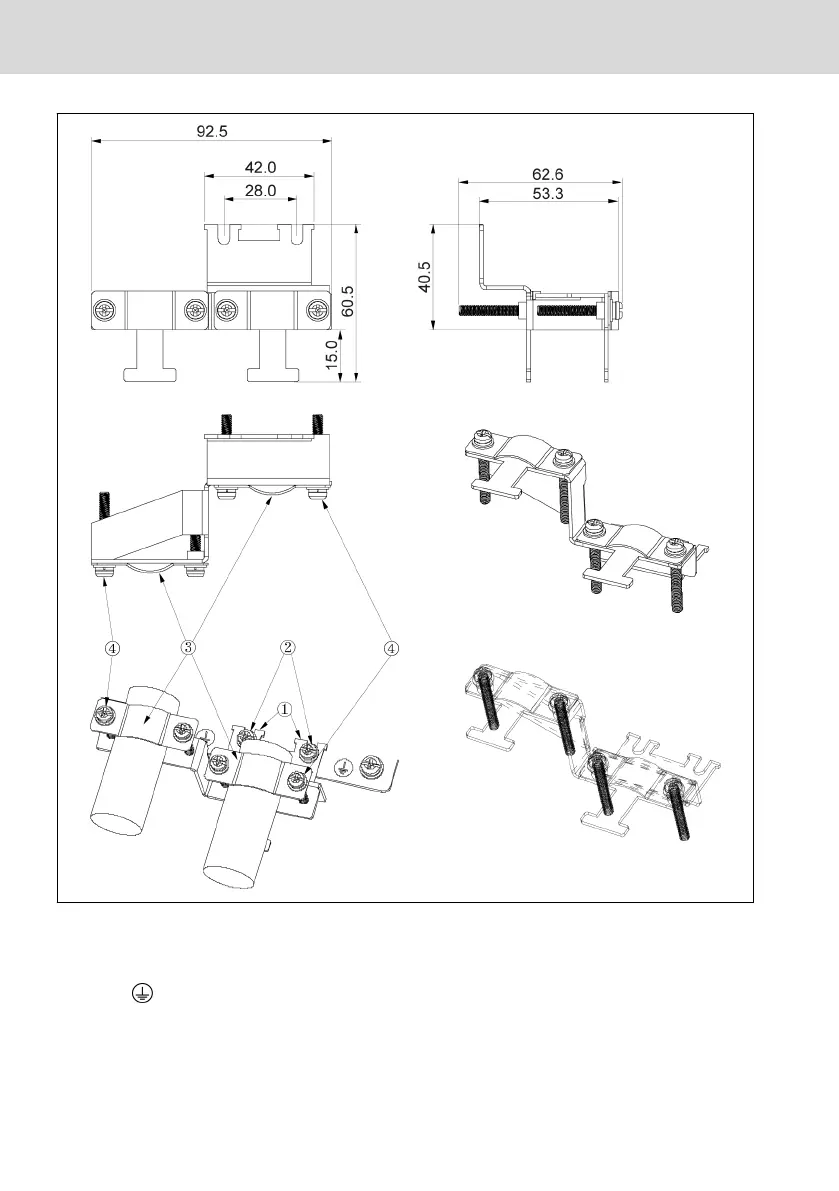

Fig. 15-29: Shielded cable connection with accessories for 5K50...22K0
Connection steps
Step 1: Place component â‘ of the connector on the two screw holes inside of
symbols and tighten the screws (component â‘¡: M4 x 12).
Step 2: Insert the shielded cables through component â‘¢ of the connector with
the shielding layer reliable contact with the metal.
Step 3: Tighten four screws of the accessories (component â‘£: M4 x 45).
Bosch Rexroth AG
Accessories
EFC x610 Series
314/389
DOK-RCON03-EFC-X610***-IT05-EN-P
