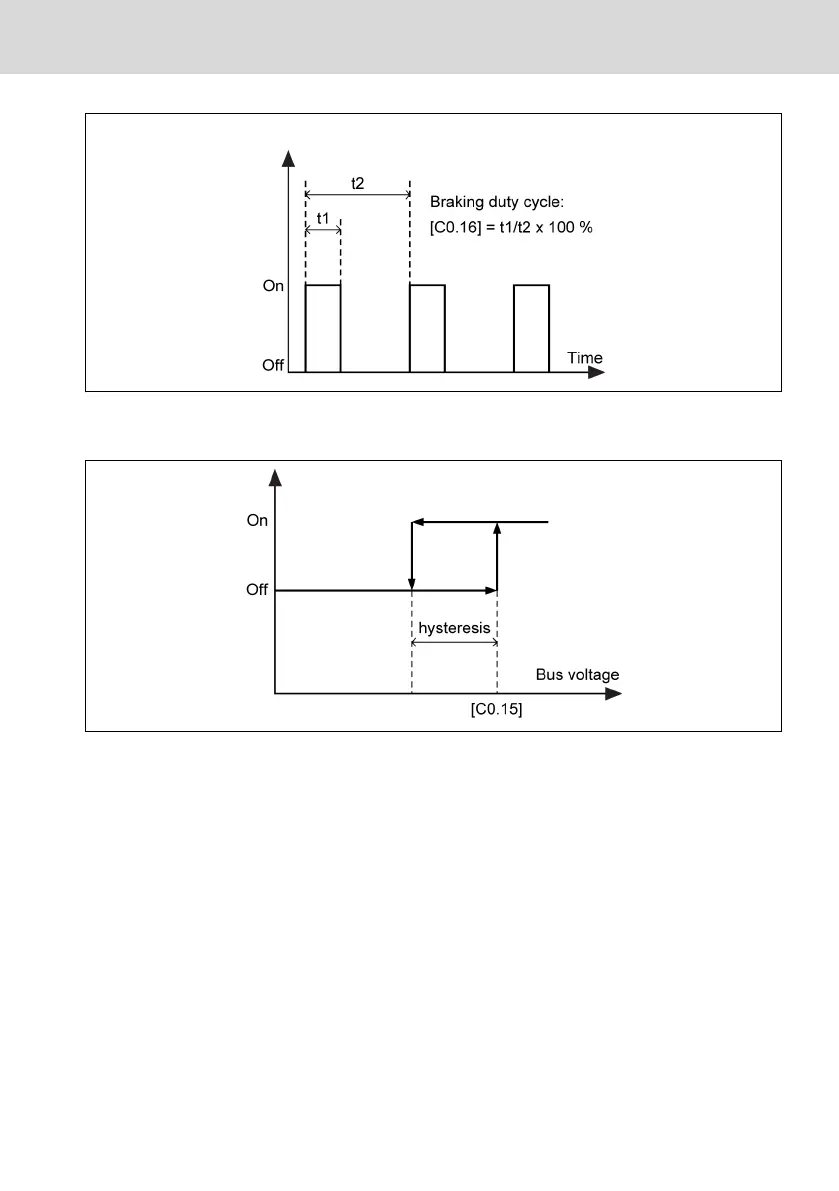

Fig. 12-30: Braking duty cycle
t1 = t2 x [C0.16] / 100 %; t2 = 1 / 100 Hz = 10 ms
Fig. 12-31: Hysteresis
The hysteresis for different models is as listed below:
● 1P 200 VAC: 24 V
● 3P 400 VAC: 10 V
EFC x610 Series
Bosch Rexroth AG
Functions and Parameters
DOK-RCON03-EFC-X610***-IT05-EN-P
163/389
