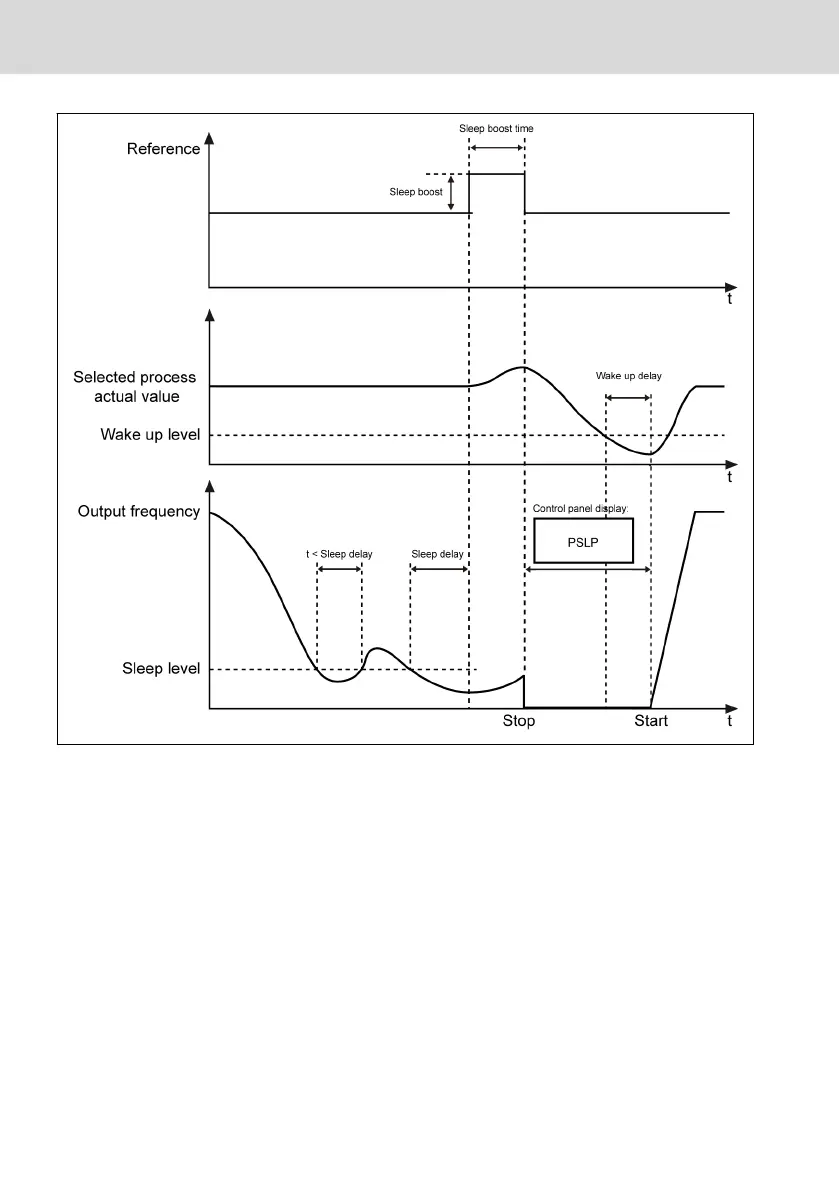

Fig. 12-49: Sleep and wake up process
After [E5.16] 'Sleep delay', the PID controller boosts up with [E5.18] 'Sleep
boost amplitude' within [E5.17] 'Sleep boost time', and then enters to sleep
mode. In sleep mode, the frequency converter stops output with 'PSLP' dis-
played on the operating panel.
[Sleep boost] = [E5.18] x [PID reference]
During sleeping, the frequency converter monitors the actual PID feedback and
wakes up when the following two conditions are met:
● [PID feedback] < [E5.19] 'Wake up level'
● [Duration] t ≥ [E5.20] 'Wake up delay'
The frequency converter resumes to its previous running status after waking up.
