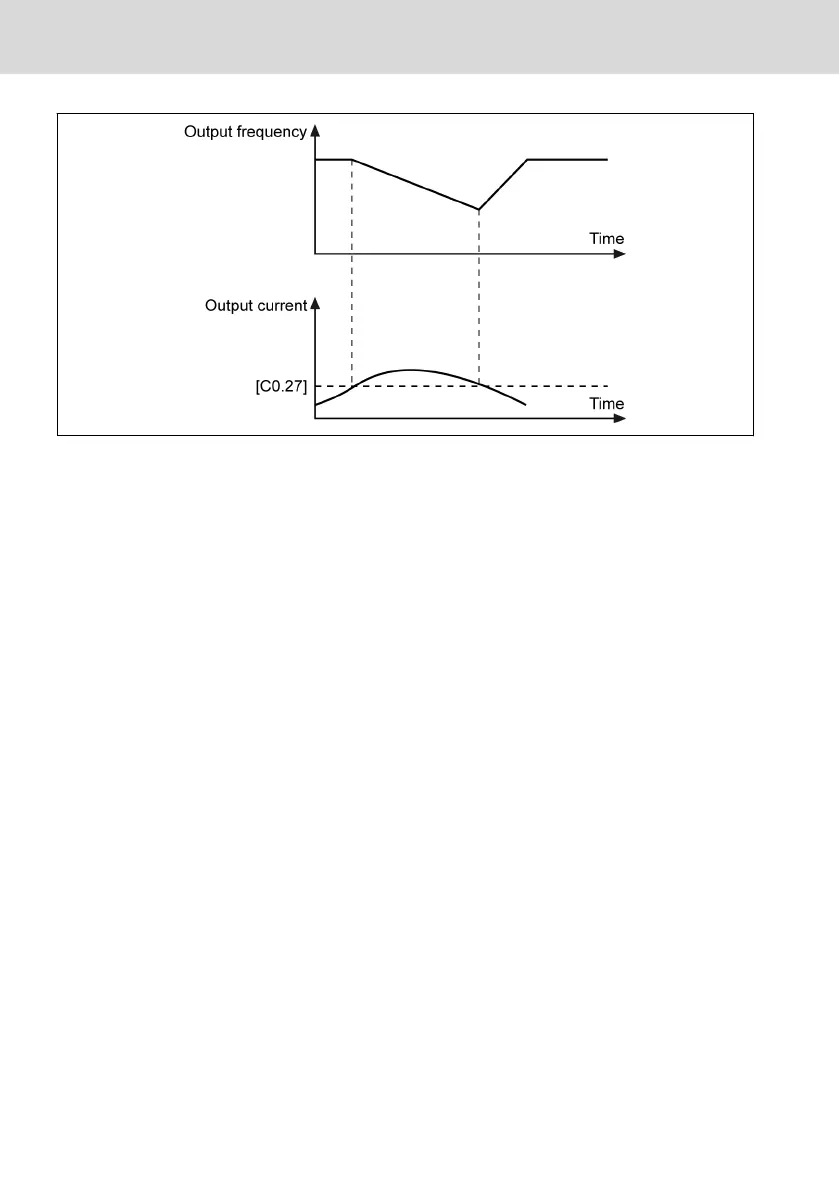

Fig. 12-52: Stall overcurrent at constant speed
● [Output current] > [C0.27]
The output frequency decreases till the output current is lower than [C0.27]
with defined deceleration time.
● [Output current] < [C0.27]
The output frequency increases to the setting frequency with defined acceler-
ation time.
Bosch Rexroth AG
Functions and Parameters
EFC x610 Series
202/389
DOK-RCON03-EFC-X610***-IT05-EN-P
