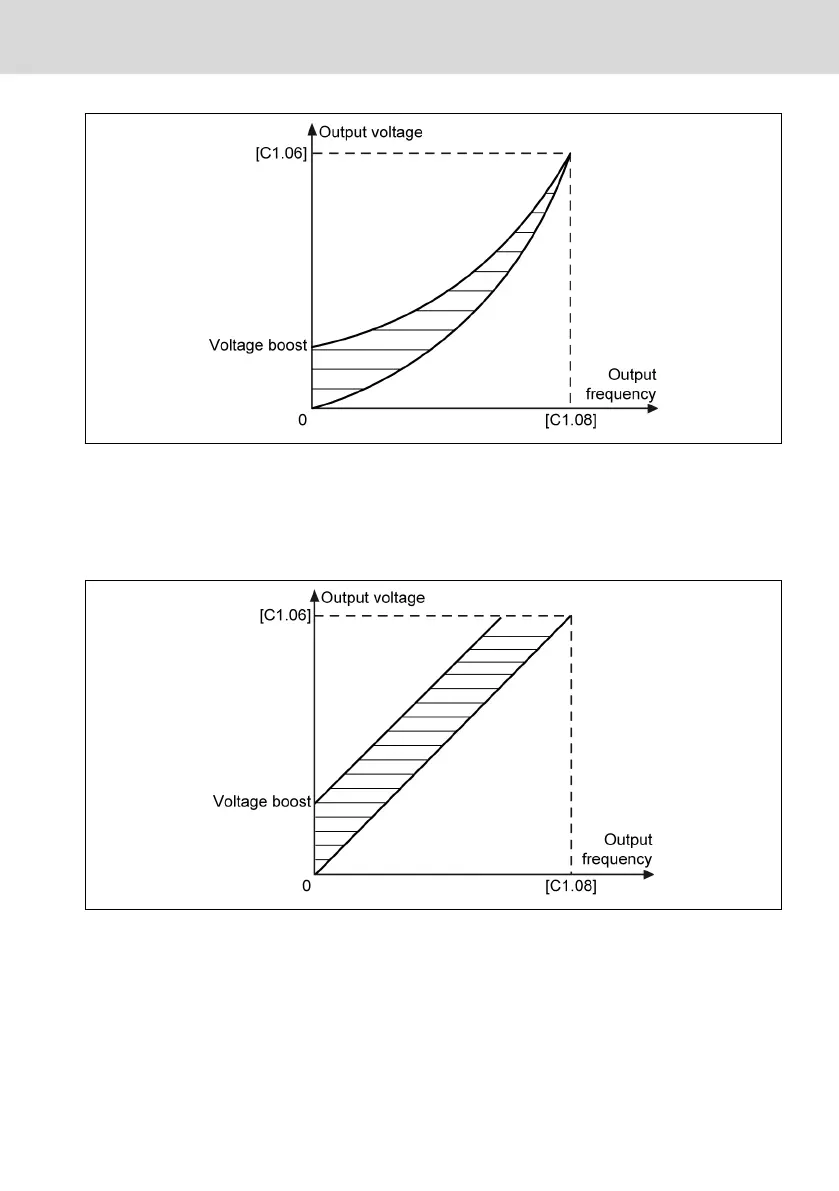

Fig. 12-65: Manual torque boost with square curve
In automatic boost mode, the output voltage boost percentage is determined au-
tomatically by the output frequency and the load current. The linear and square
V/f curves for automatic torque boost are shown as figures below.
● Automatic torque boost with linear V/f curve
Fig. 12-66: Automatic torque boost with linear V/f curve
● Automatic torque boot with square V/f curve
EFC x610 Series
Bosch Rexroth AG
Functions and Parameters
DOK-RCON03-EFC-X610***-IT05-EN-P
221/389
