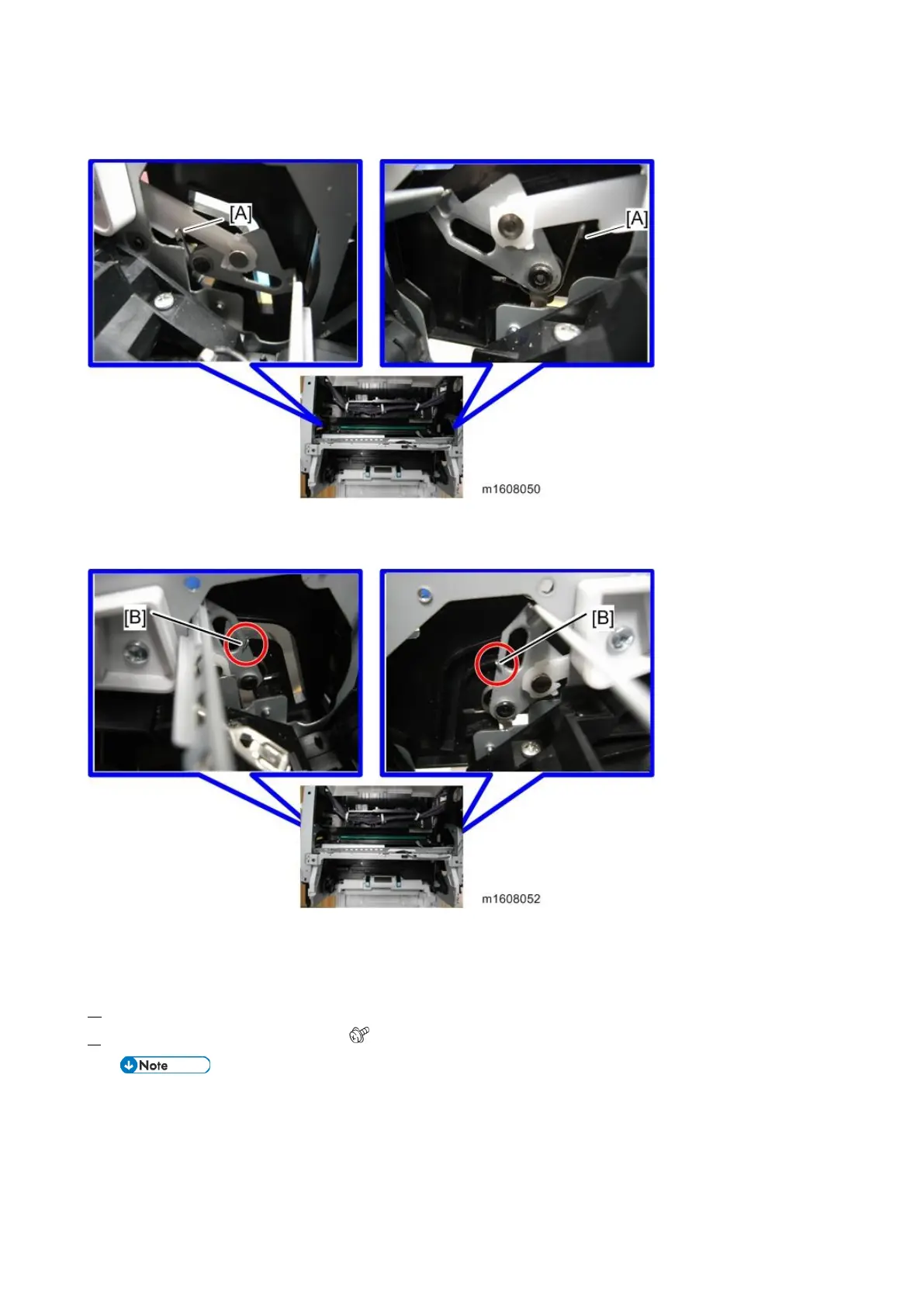

Hook disengaged [A]
Hook correctly engaged [B]
If the hook is engaged correctly, the LED unit holder is raised to the front by the spring.
Right side
1. Remove the right cover, and then remove the gear unit. (Gear Unit)
2. Loosen the screws on the cover [A]. ( x3).
Do not remove the screws. Only loosen them enough to insert tweezers or a screwdriver into the gap.
