2.Installation
68

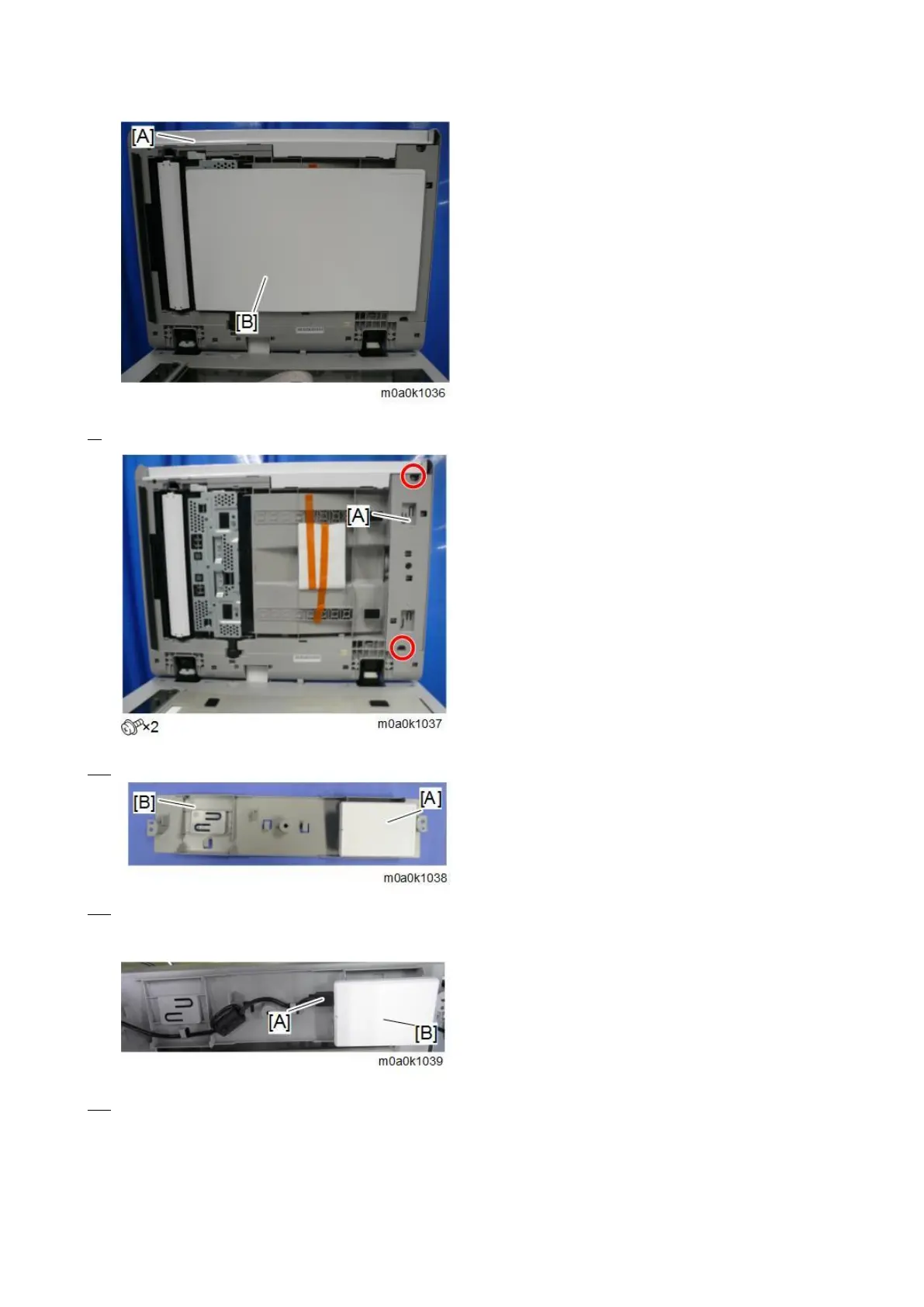

9. Remove the SPDF bottom cover [A].
10. Use the double-sided tape to attach the NFC card reader [A] to the rear of the SPDF bottom cover [B].
11. Connect the USB cable [A] to the NFC card reader [B].
Route the cable as shown below.
12. Push the tab [A] through the SPDF to create a hole.
