Ricoh M0A0

2.Installation
71

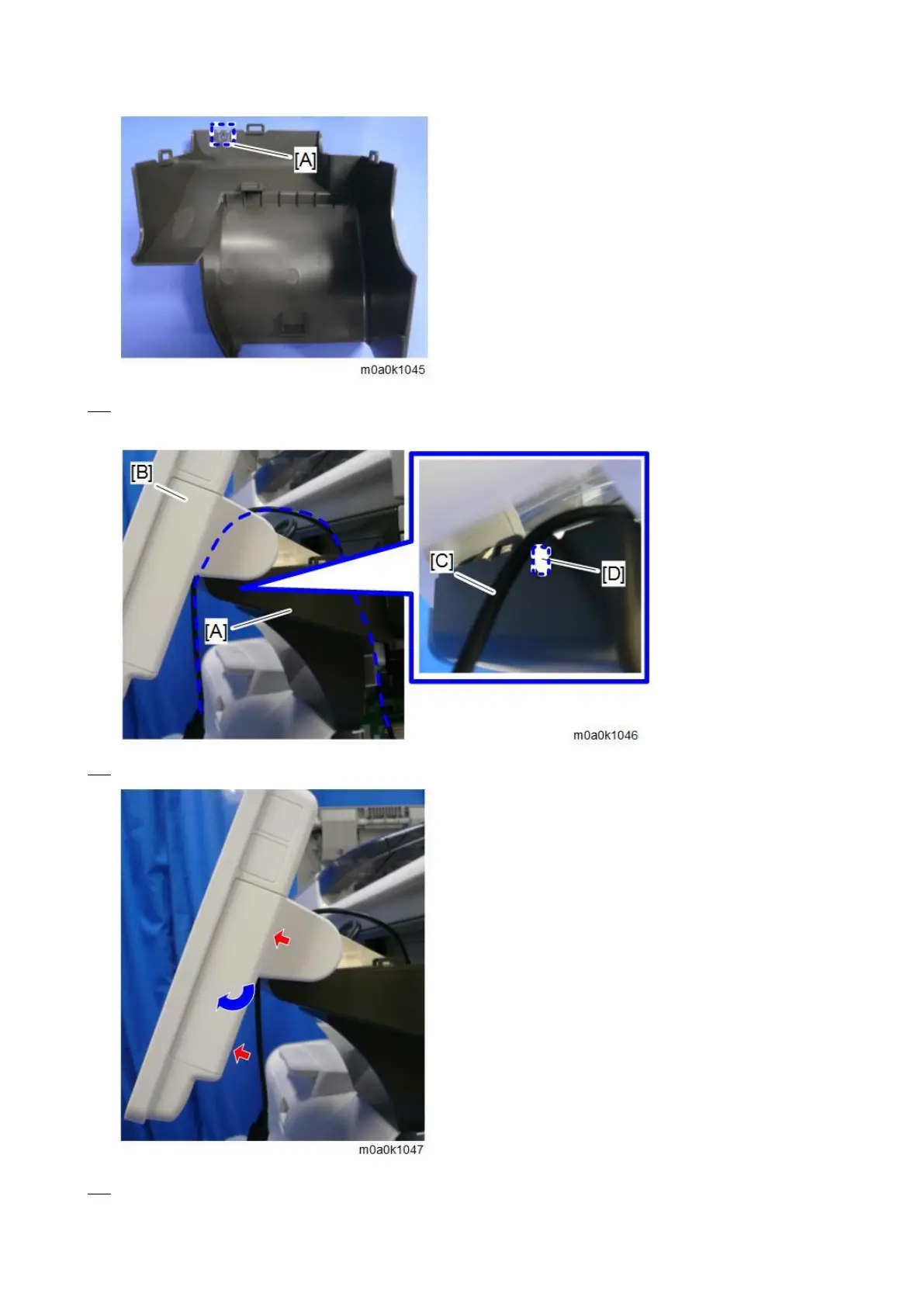

22. Attach the operation panel lower cover [A] to the operation panel [B], with the USB cable [C] passing through the
cutout [D].
23. Remove the side cover of the operation panel.
24. Connect the USB cable [A] to the operation panel.
