Removal and replacement of ADU modules
98-137654-A Chapter 8: Service & maintenance 8-21
8888
Service & maintenance
4. Disconnect the F-connector at the top of the TIM.
5. Disconnect the N-connector at the bottom of the TIM, the F-
connector at the top of the TIM, the SUB-D connector, then the
small cable (SMA connector) at the bottom of the TIM.

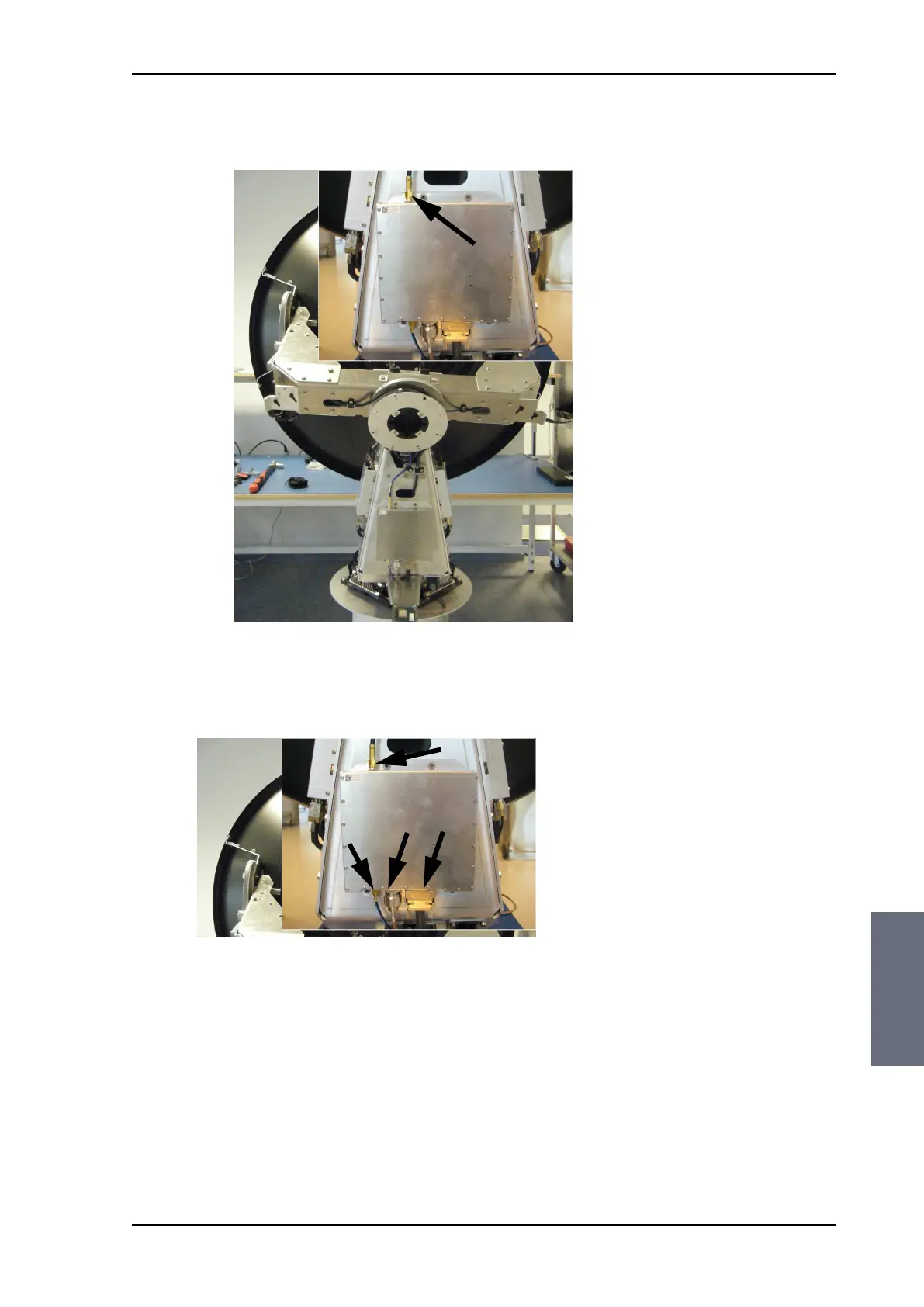

Figure 8-16: Replacing the TIM — remove the F-connector
Figure 8-17: Replacing the TIM — remove N, F, SMA and SUB-D connectors
