Removal and replacement of ADU modules

98-137654-A Chapter 8: Service & maintenance 8-73

8888

Service & maintenance

9. Separate the belt-wheel by removing the 4 Allen screws.

10. Make a note of the positioning of the wheel on the LNB.

11. Put the LNB back in described reverse order. You may need to

slide the drive belt on after the LNB is mounted with its three

screws.

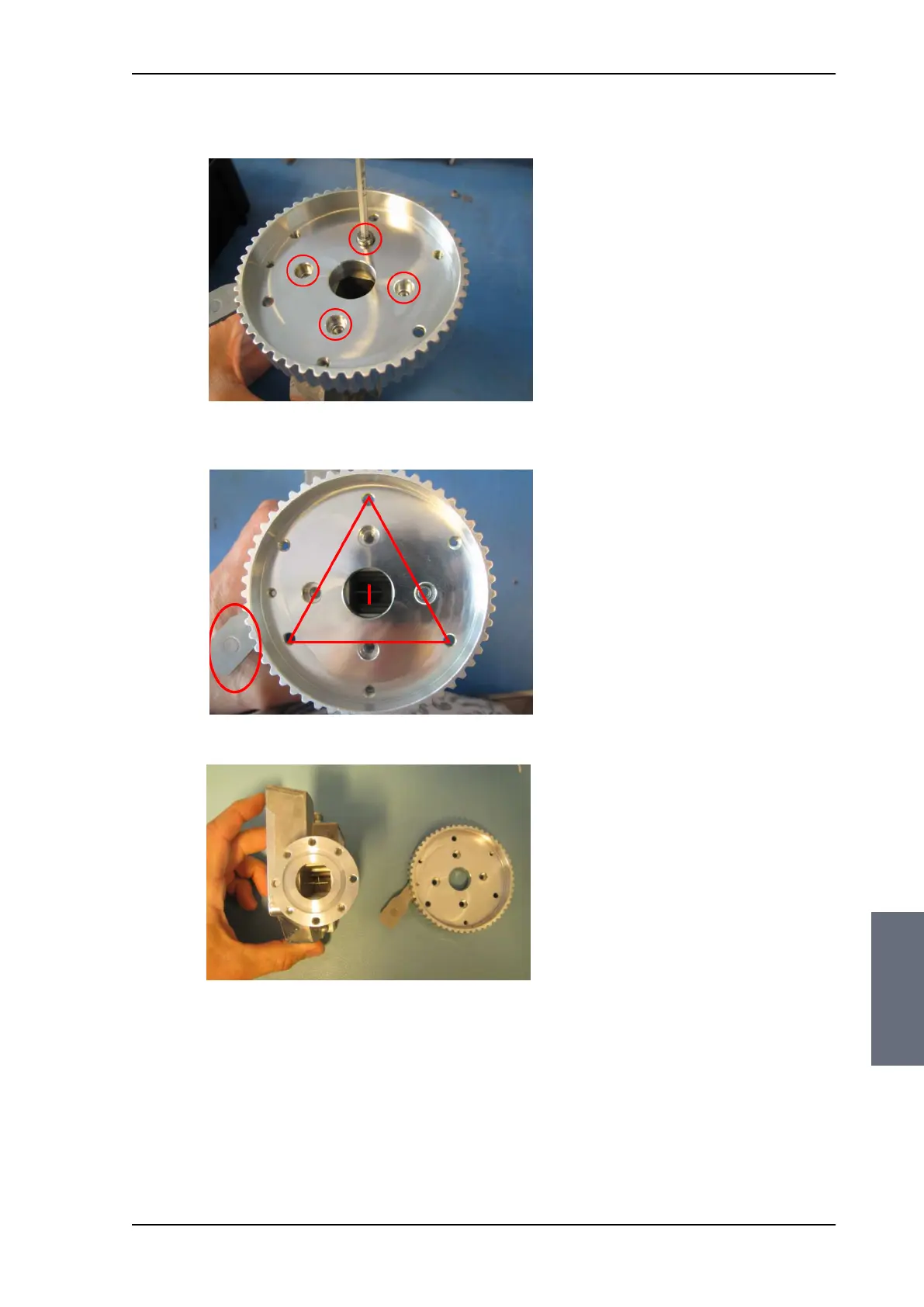

Figure 8-93: Separate the belt wheel

Figure 8-94: Removing the LNB — position of the wheel

Figure 8-95: Removing the LNB — LNB alone
