Sailor 100 - Figure 8-36: Azimuth Motor, Remove Cover; Figure 8-37: Azimuth Motor, Loosen the Belt Tensioner

Removal and replacement of ADU modules
8-36 Chapter 8: Service & maintenance 98-137654-A
6. Loosen the 15x4 mm Allen screws (the 3 Allen screws on top are
longer than the rest) on the cover over the azimuth drive
modules, and remove the cover (lift and slide).
7. Loosen the belt tension device by loosening the 4x4 mm Allen
screws (thread size M5).

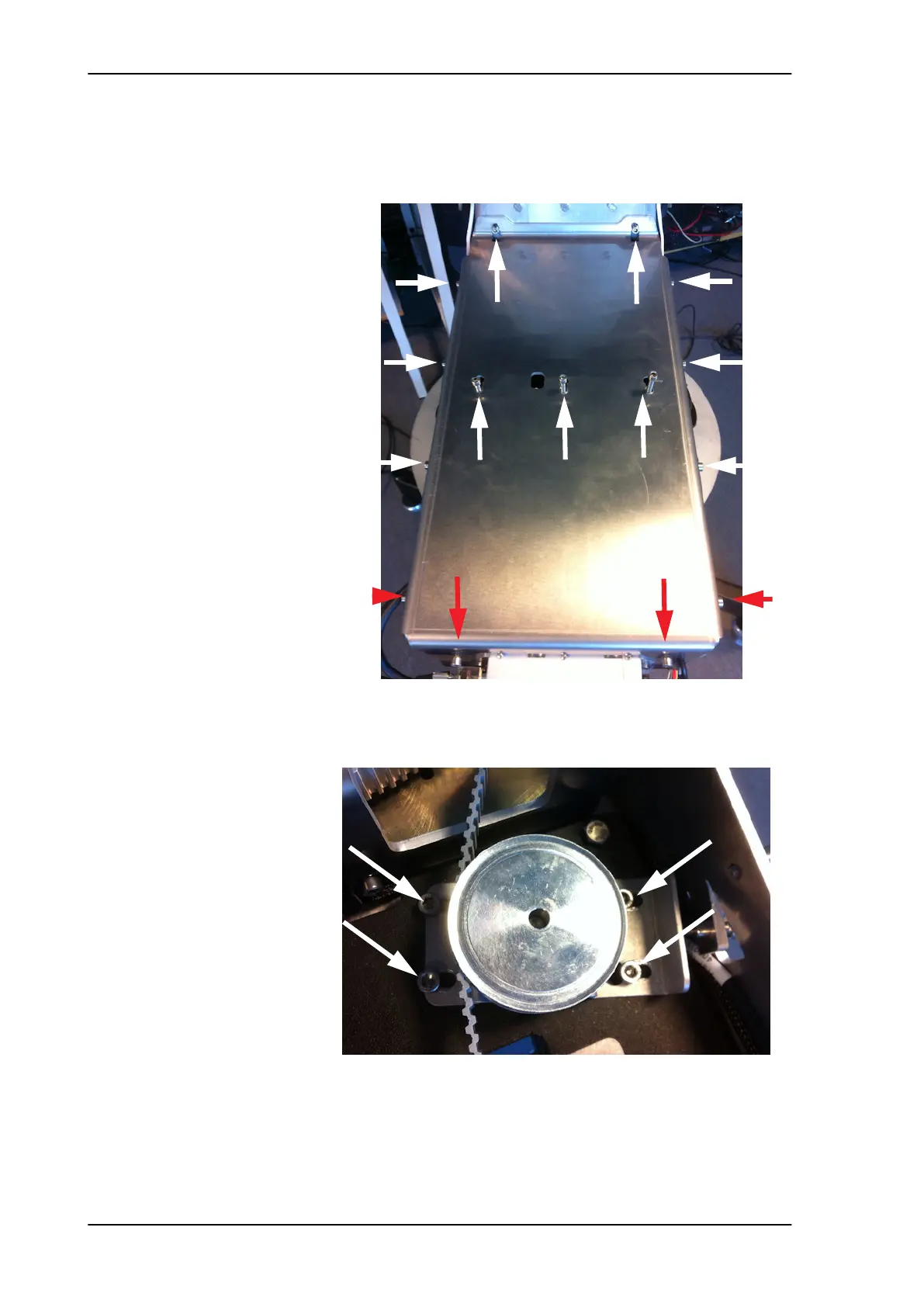

Figure 8-36: Azimuth motor, remove cover
Figure 8-37: Azimuth motor, loosen the belt tensioner
L=35 mm L=35 mm L=35 mm
